Product Details:
|
| Product Name: | Carbon Dioxide Incubator | Vlotage (V): | 110/220 |
|---|---|---|---|
| Temp Range (℃): | RT+5 ~60 | Accu Racy (℃): | ±0.1 |
| Fluct Uation (%): | ±0.5 | CO2 Control Range: | 0~20% |
| Power (KW): | 0.35 | Shelves: | 2 Pcs/ Adjustable |
| Co2 Range: | 0-20% | Warranty: | 2 Years |
| Heating Method: | Air-jacketed PID Control | Application: | Cell/tissue Culture |
| High Light: | PID CO2 Incubator For Cell Culture,CO2 Incubator For Cell Culture Microorganism,Microorganism Cell Incubators |
||

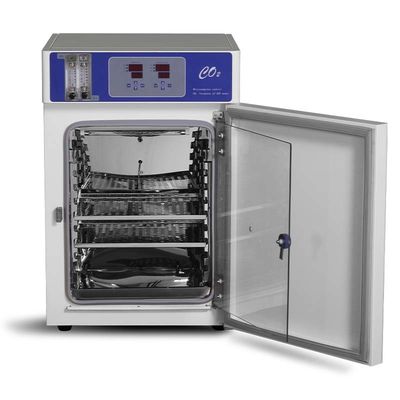

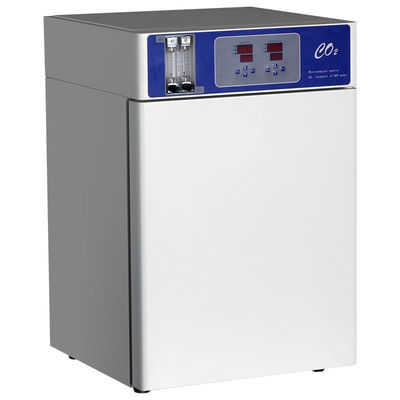

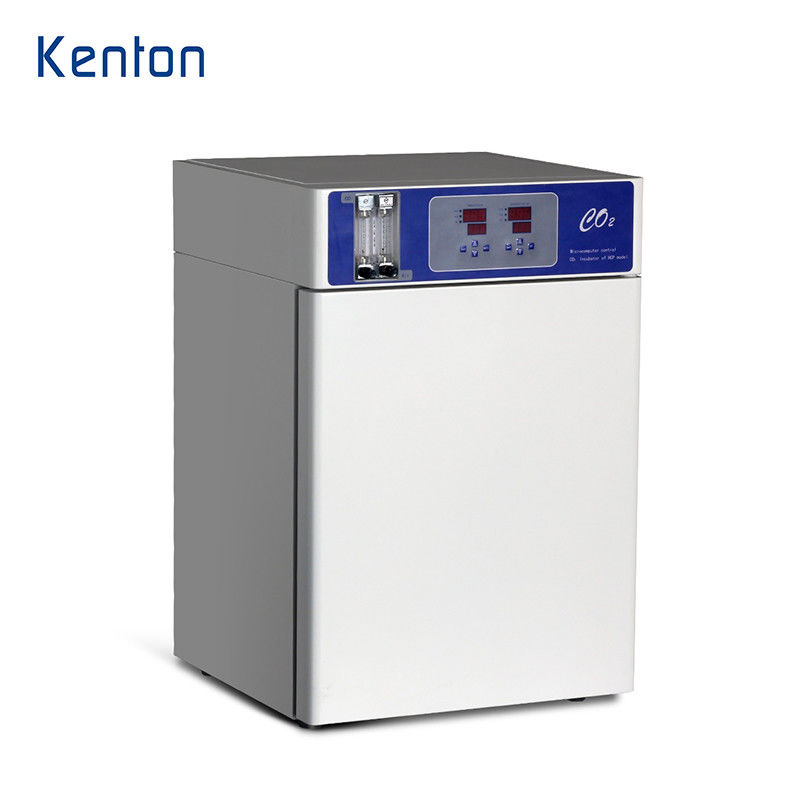

KENTON CO2 Incubator For Cell Culture Carbon Dioxide Microorganism Incubator With Stainless Steel Inner
HCP series CO2 incubator:
Use for cells, tissues and bacterial culture; is the key equipment to carry out essential immunology, oncology, genetics and bio-engineering. Widely used in microorganisms, agricultural science, drug research and production.
Microcomputer intelligence control, constant temperature with timing, over temperature function; gas distribution type, CO2 recovery time ≤concentration×1.2Min. built-in UV sterilization lamp, tempered glass door, adopt door heating control system which can effectively avoid frost in glass door.
Scope:
●It an advanced instrument applies to cells, tissues, and bacterial culture . Is the key equipment to carry out essential immunology, oncology, genetics and bio-engineering. Widely used in microorganisms, agricultural science, drug research and production.
Feature:
●Microcomputer intelligent PID control technology, to maintain accurate and constant temperature and with timing, also with ultra-high temperature alarm function.

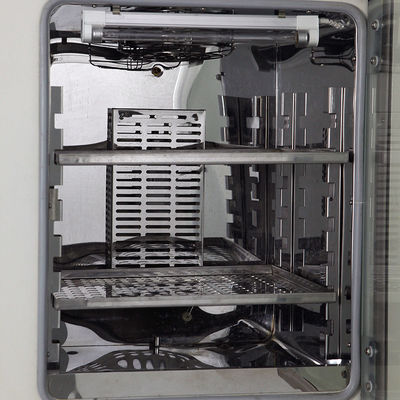

●Internally equipped with a UV germicidal lamp, which can effectively kill bacteria, fungi, mycoplasma and other microorganisms
●The unique air circulation, soft wind, to ensure temperature uniformity
●Gas distribution type, CO2 recovery time ≤ concentration x 1.2Min
●Adopt door heating control system,which can effectively avoid frost in glass doors.
●The design of the double doors, built-in tempered glass viewing window, clear observation of the locker, shelf up and down pitch adjustable.
Technical Parameters:
|
Model
|
Temp
range (℃)
|
Accu
racy
(℃) |
Fluct uation (%)
|
CO2
control range
|
Vlotage
(V) |
Power (KW)
|
Inner size
(mm)
(H*W*D)
|
Overall dimension
(mm) (H*W*D) |
Packing size
(mm)
(H*W*D)
|
Net weight
(KG)
|
Shiping weight
(KG) |
|
HCP-80S
|
RT
+5~60
|
±0.1
|
±0.5
|
0~20%
|
220
|
0.35
|
500×400×400/80L
|
835×550×550
|
955×630×630
|
36
|
40
|
|
HCP-160S
|
0.35
|
650×550×500/160L
|
985×700×650
|
1105×780×730
|
57
|
62
|

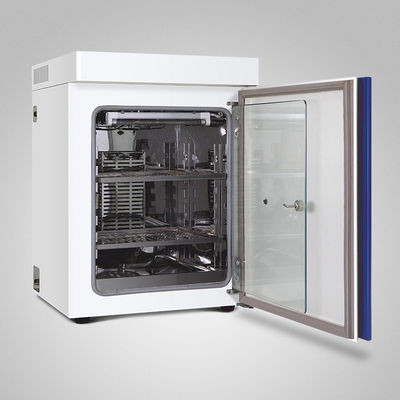

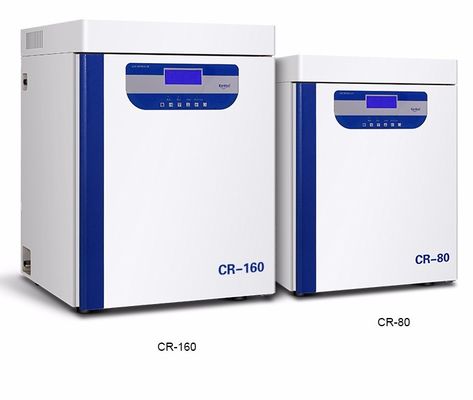

CR series CO2 incubator:
Use in cell culture, microbiology research, pathology and life science fields.
Creating a natural growth of the same simulation environment, adopt chamber heating technology to provide a stable temperature, the professional-grade IR CO2 sensor, more accurately detect CO2 concentration. Equipped with UV sterilization lamp, effectively prevent cross-contamination of cultivation.
Technical Parameters:
| Product Model | ALLIGENT-CR CO2 Incubator | |
| CR-80 | CR-160 | |
| Convection Mode | Forced Convection | |
| Control System | Microprocessor PID | |
| Temp. Range | RT+5℃~55℃ | |
| Temp. Accuracy | 0.1 | |
| Temp. Fluctuation(37℃) | ±0.5 | |
| Temp. Uniformity(37℃) | ±0.8 | |
| CO2 Range | 0~20% | |
| CO2 Sensor/Uniformity | IR sensor(±0.1%) | |
| CO2 Recovery Without overshoot (after 30 seconds door opening to 5%) | ≤2 minutes | |
| Temp. Recovery Without Overshoot(after 30 seconds door opening to 37℃) | ≤8 minutes | |
| Humidification Method | Humidity Pan＞95%(with Temp. display) | |
| Working environment | Ambient temperature:10~30℃, Humidity <70% | |
| Insulation materials | Imported environmental protection type material | |
| External Dimensions(H×W×D) | 755×550×547 | 905×610×687 |
| Internal Dimensions(H×W×D) | 500×400×400 | 650×460×540 |
| Interior Volume(L) | 80 | 160 |
| Interior steel materials | SUS304 stainless steel | |
| Number of Shelves | 2 | 3 |
| Power supply | Single phase AC220V/50Hz | |
| Power Consumption (W) | 500 | 650 |
| Net Weight(KG) | 35 | 55 |
| Shipping Weight(KG) | 38 | 58 |
| Shipping Dimensions(H×W×D) | 880×630×635 | 1030×690×695 |
