Product Details:
|
| Product Name: | Large Dryer Machine | Voltage: | 110/220/380V |
|---|---|---|---|
| Internal Size (mm): | 1000*600*430 | Temp.range: | RT+5~150℃ |
| Capacity: | Customized | Accuracy: | ±1.°℃ |
| Fluctuation: | ±2% | Power ( KW): | 3.6 |
| Trays: | 10 | Function: | Customized |
| High Light: | 110V Drying Oven Industrial,Drying Oven Industrial 150C,150C Large Dryer Machine |
||

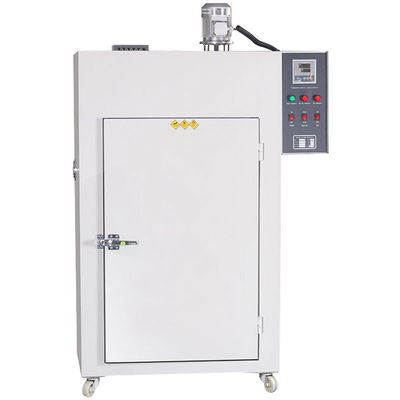

Kenton Industrial Drying Oven Large Dryer Machine With Stainlees Steel 110/220/380V
KYS
Microcomputer intelligent temperature control, digital display; centrifugal wind wheel, heat flow evenly; large studio space, fast heating time; (can be equipped with explosion-proof locks, explosion doors).
Used for dehydration and drying of the product, suitable for industrial, mining enterprises, workshop batch production, can be a long time uninterrupted operation.
Widely used in electroplating industry, electronic industry, alloy jewelry drops of oil, food and plastic industry, leather industry, hardware industry, etc. is not suitable for flammable and explosive materials processing.
Product introduction:
●For dewatering, drying, producing industries such as electroplating industry, electronic industry, alloy jewelry drip, food, plastics industry, leather industry, hardware and other applications, but not for the strong volatile. Flammable and explosive items in order to avoid explosion. (If the explosion-proof requirements, you must install safety facilities, such as explosion-proof lock and blast doors)
Features:

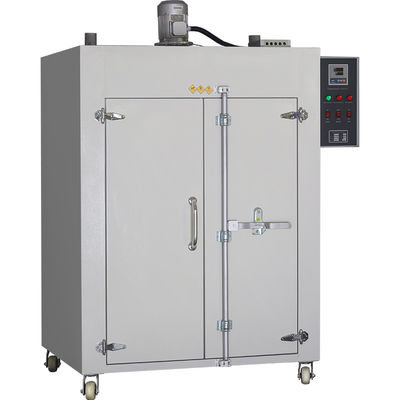

●According to the box size single door or double door design. Large diameter centrifugal wind wheel. Uniform heat circulation.
●The shell is made of high quality cold-rolled steel with metallic paint spray with nice overall color design. Suitable for all workshop production.
●Digital display intelligent temperature comptroller with microcomputer intelligent PID control and timing function.
●Large diameter centrifugal wind wheel. Uniform heat circulation.
●Two models material inner chamber: mirror stainless steel and zinc-plating.
●This series product with the feature of large storage and temperature rising is fast.
●KH-100 series for the product baking such as metal, plastic, film screen printing, leather processing and industries etc.
Technical Parameters:
Features:
●According to the box size single door or double door design. Large diameter centrifugal wind wheel. Uniform heat circulation.
●The shell is made of high quality cold-rolled steel with metallic paint spray with nice overall color design. Suitable for all workshop production.
●Digital display intelligent temperature comptroller with microcomputer intelligent PID control and timing function.
●Large diameter centrifugal wind wheel. Uniform heat circulation.
●Two models material inner chamber: mirror stainless steel and zinc-plating.
●This series product with the feature of large storage and temperature rising is fast.
●KH-100 series for the product baking such as metal, plastic, film screen printing, leather processing and industries etc.
Technical Parameters:
| Model | Voltage (V) |
Temp
range (℃)
|
Accu racy (℃) |
Fluct uation (%) | Power (KW) |
Inner size
(mm)
(H*W*D)
|
Overall dimension
(mm)
(H*W*D)
|
Packing size
(mm)
(H*W*D)
|
Net weight
(KG)
|
Shiping weight (KG) |
| KH-100C |
220/380
|
RT
+5~250
|
±0.5
|
±2
|
4~6 | 1000×600×500 | 1750×1130×700 | 1870×1210×780 | 152 | 156 |
| KH-100A | 4~6 | 1000×600×500 | 1750×1130×700 | 1870×1210×780 | 152 | 156 | ||||
| KH-100AS | 4~6 | 1000×600×500 | 1750×1130×700 | 1870×1210×780 | 152 | 156 | ||||
| KH-110C | 6~8 | 1000×800×600 | 1800×1350×800 | |||||||
| KH-120C | 8~12 | 1200×900×800 | 2000×1450×1000 | 2120×1530×1080 | 214 | 221 | ||||
| KH-120A | 8~12 | 1200×900×800 | 2000×1450×1000 | 2120×1530×1080 | 214 | 221 | ||||
| KH-120AS | 8~12 | 1200×900×800 | 2000×1450×1000 | 2120×1530×1080 | 214 |
221
|
| model | Temp.range | accuracy | fluctuation | voltage | power ( KW) |
Internal size (mm) |
External size (mm) |
trays |
| KYS-80AS | RT+5~150℃ | ±1.°℃ | ±2% | 220V | 2 | 800x600x430 | 1220x735x680 | 8 |
| KYS-100AS | 220V | 3.6 | 1000x600x430 | 1790x1100x650 | 10 | |||
| KYS-120AS | 38oV | 7.2 | 1200x840x630 | 1910x1330x820 | 20 |
