Product Details:
|
| Product Name: | Laminar Flow Hoods | Inner Size(mm): | 500×830×550 |
|---|---|---|---|
| Vibration Half Peak: | ≤3μm(X,Y,Z Direction) | Illumination(LX): | ≥300 |
| Wind Speed: | 0.3~0.6m/s(Adjustable) | Voltage(V)/: | AC220V/50Hz |
| Power(W): | 440 | Number Of People: | One |
| High Light: | HEPA Vertical Laminar Flow Hood Air Flow,Vertical Laminar Flow Hood Air Flow 50Hz,50Hz Laminar Flow Hood Cabinet |
||

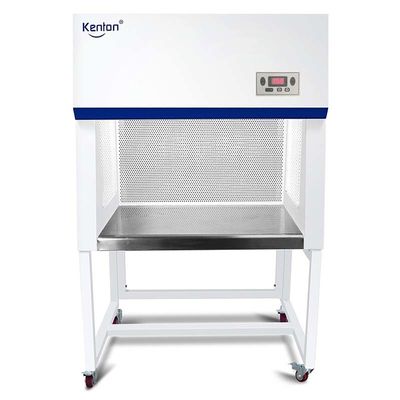

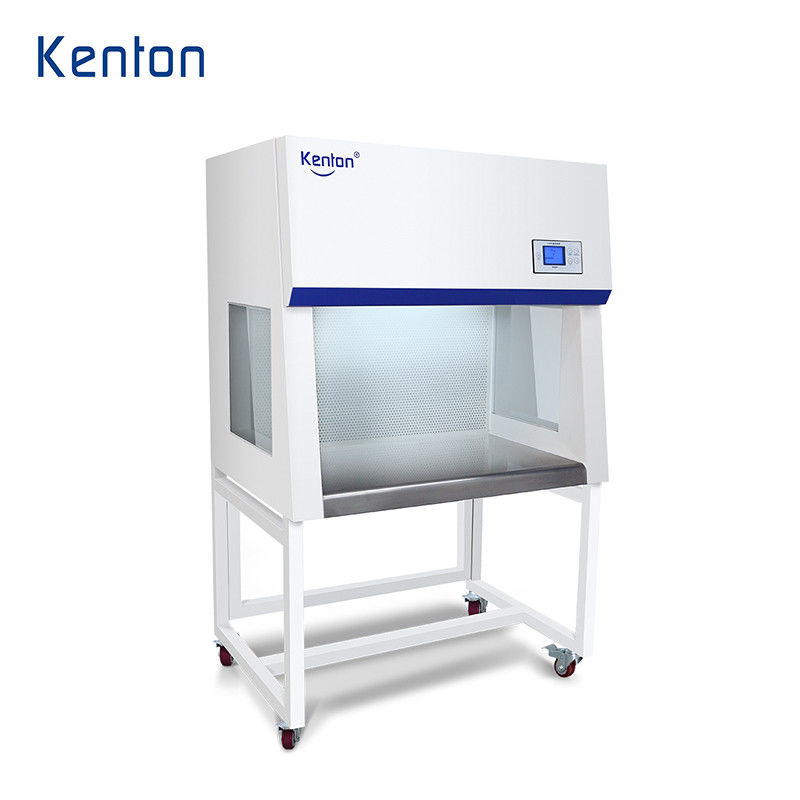

Customizable OEM Laminar Air Flow Cabinet For One Person Laminar Flow Hoods
JHZ-1 laminar air flow cabinet :
Product introduction:

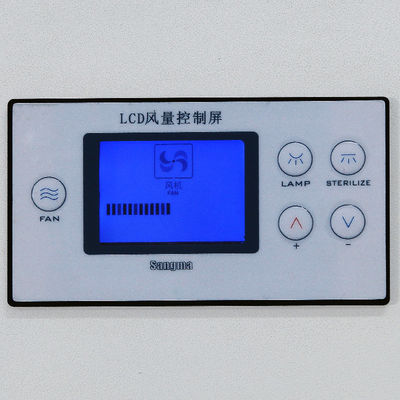

●Integrated LCD dot matrix LCD display, real-time display the status of lighting, sterile, air flow and other parameters.
●User-friendly design, with sterilization, lighting, interlock functions to protect the operator from UV light burns and ensure safe operation.
●Wind speed multi-level adjustable, the air volume can be adjusted according to the user.
CLEANFLOW™ clean air technology:
●Centrifugal wind wheel low-power motor, based on airflow mechanics principle, arc-shaped large-diameter inlet design to reduce turbulence generated to ensure low noise operation of the system.
●Reasonable duct design, optimized net press box, with micro-mesh design layer outflow wind deflector, convex, no dead ends, to ensure the uniformity and stability of the airflow.
●Standard early-efficient and efficient double-filter, primary filter to avoid airflow dust particles to enter and extend the life of high efficiency filter. High efficiency filter without clapboard HEPA, retention efficiency of 99.99%.

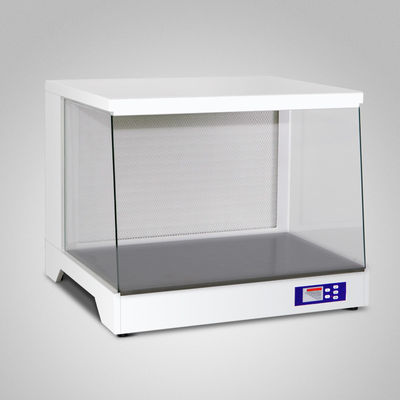

●According to the customer's requirements, CLEANFLOWTM series with the vertical flow and horizontal airflow
Ergonomically designed:
●The front overall tilt design, low noise operation, increase operation comfort.
●Operating room standard with gas water interface, splash-proof power outlet to facilitate the experiments carried out smoothly.
●With weight up and down sliding front door, can be anchored.
●Built-in lighting system to provide the best illumination angle and brightness, reduce visual fatigue.
●On both sides of translucent double-glazed side windows, to enhance the light permeability, and non-convex design of the work area, no death and no spoiler design.
●The platform using an anti-corrosion resistance of SUS304 stainless steel plate forming the front of the arc-shaped design and increase operator comfort.
Modern manufacturing processes:
●Sheet metal parts use laser cutting and CNC bending technology. Cold-rolled sheets use three line of acidification anti-rust technology. Incubator surface use workmanship of spraying plastics.
Easy to clean:
●The early effect of the filter core and the air inlet stencil a shape, facilitate regular on the early effect of filter element folding loading and cleaning.
●The polished design of the work surface as a whole, without pits, no dead ends on both sides, and a minimum of stitching design, easy to clean and disinfect.
Convenient maintenance:
●Removable combination tripod, easy to transport and move, Stand height adjustable.
●Eversion design of the front control panel to facilitate the electrical components, maintenance and replacement.
●In order to make the device able to achieve long-term cleanliness requirements, it is recommended to the early effect of the equipment and high efficiency filter in use for some time to clean or replace.
Technical Parameters:
|
Product type
|
JHP horizontal super clean bench series
|
JHZ vertical super clean bench series
|
||
|
|
one person JHP-1
|
two person JHP-2
|
one person JHZ-1
|
two person JHZ-2
|
|
Cleanliness rating
|
The international ISO 14644.1 standard, CLASS 5 (U.S. Federal 209E, 100 level)
|
|||
|
wind speed
|
0.3~0.6m/s(Adjustable)
|
|||
|
Noise (dB)
|
≤62
|
|||
|
Vibration half peak
|
≤3μm(X,Y,Z direction)
|
|||
|
High efficiency filter
|
Efficiency 99.99%
|
|||
|
Illumination(LX)
|
≥300
|
|||
|
Work environment
|
Ambient temperature 10~30℃, Relative humidity
below 70%, No obvious vibration and dust around |
|||
|
Overall size(mm)
(H×W×D) |
1585×990×735
|
1585×1460×735
|
1585×990×735
|
1585×1460×735
|
|
Inner size(mm)
(H×W×D) |
500×830×550
|
500×1300×550
|
500×830×680
|
500×1300×680
|
|
Voltage(V)/
|
AC220V/50Hz
|
|||
|
Power(W)
|
440
|
870 |
440
|
870
|
|
Net weight (KG)
|
120
|
210
|
110
|
210
|
|
Shipping weight(KG)
|
130
|
235
|
130
|
235
|
|
Packing size(mm)
(H×W×D) |
1030×1180×855
|
1030×1650×855
|
1030×1180×855
|
1030×1650×855
|
Applicable in the field of protection of biotechnology, pharmaceutical, life sciences and precision electronic products.
JH series clean bench combined with perfect airflow mechanical design for the operator to create a partial purification work environment so that experiments can be carried out smoothly.
CE certification, two years warranty period.
