Product Details:
|
| Product Name: | Dryer Cabinet | Temp Range: | RT+5 ~250℃ |
|---|---|---|---|
| Timing Range: | 0~999 Min | Accu Racy: | ±0.5℃ |
| Fluct Uation: | ±1℃ | Power (KW): | 0.5-2.5 |
| Voltage: | 110V/60Hz Or 220V/50Hz | Warranty: | 2 Years |
| After-sales Service Provided: | Video Technical Support | Heating Rate: | About 10mins From RT To 100°C |
| High Light: | 250C Air Circulation Lab Oven Drying,Lab Oven Drying LCD Thermostatic,LCD Thermostatic Drying Oven Biology |
||

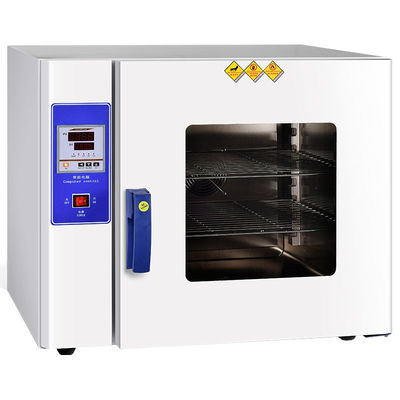

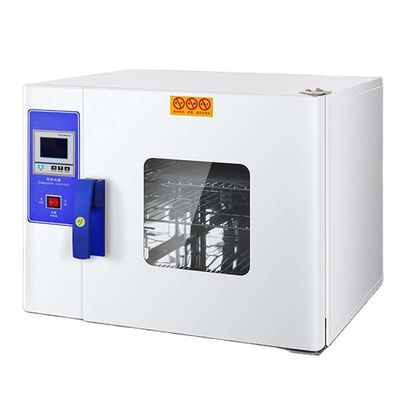

Air Circulation Laboratory Dryer Cabinet Thermostatic Drying Ovens China Made
KH series:
Micro-computer intelligent control, temperature control, timing, over-temperature alarm function; fan forced convection hot air circulation system; stainless steel liner/optional cold rolled steel plate; shelf space and shelf number can be adjustable; high-temperature resistant silicone for sealing the door safe and reliable;
Cost effective recommended for routine laboratory use.
Suitable for the major hospitals, medicine, biology, agriculture, research and other departments for drying, heating storage, heating, but not suitable for easy volatile, avoid to cause explosion.
Product introduction:
●Provide for the health, medicine, biology, agriculture, research and other departments, for storage, training, research use.
Feature:
●wo kinds of controller types Microcomputer intelligent type and LCD display upgraded type.
●The shell is made of high quality cold-rolled steel with environmental electrostatic spray treatment with nice overall color design suitable for all labs.
●With a large angle observation window, timer, over-temperature alarm function.

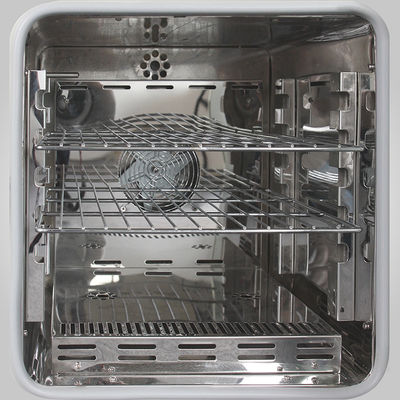

●Semicircular corners inner chamber is easy to clean.
●Two models material mirror stainless steel and ordinary cold-rolled stainless steel.
●Reasonable air cycle to make the temperature more uniform.
●High temperature resistant silicone for sealing the door, high-temperature heat pipes for the heating element to ensure safety and longer life.
Technical Parameters:
|
Model
|
Voltage
(V) |
Temp
range (℃)
|
Timing range
|
Accu racy
(℃) |
Fluct uation (%)
|
Power (KW)
|
Inner size
(mm)
(H*W*D)
|
Overall dimension
(mm) (H*W*D) |
Packing size
(mm)
(H*W*D) |
Net weight
(KG)
|
Shiping weight
(KG) |
|
KH-25A(S)
|
110/
220
|
RT
+5 ~250
|
0~999 min
|
±0.5
|
±1
|
0.5
|
250*250*265
|
470*540*450
|
|
|
|
|
KH-35A(S)
|
1
|
350*350*350
|
530*640*550
|
650*720*630
|
35
|
38
|
|||||
|
KH-45A(S)
|
1.2
|
450*450*350
|
630*740*550
|
750*820*630
|
44.5
|
47.5
|
|||||
|
KH-55A(S)
|
1.6
|
550*550*450
|
750*890*630
|
870*970*710
|
59.5
|
63.5
|
|||||
|
KH-75A(S)
|
2.5
|
750*600*500
|
980*965*770
|
1100*1045*850
|
93
|
102
|
The modes with “S” is stainless steel inner chamber.

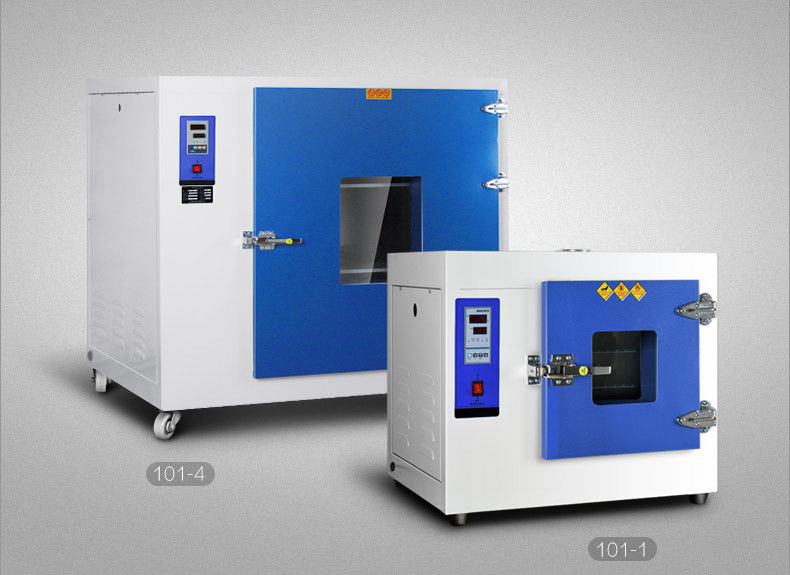

101 series
Product introduction:
●Provide for the industrial factory, labs, research and other departments for Drying, baking, melting and sterilizer use.
Features:
●Three kinds of controller types Pointer controller, LED microcomputer controller and Microcomputer intelligent type.
●The shell is made of high quality cold-rolled steel with metallic paint spray. Nice overall color design suitable for all research labs and workshop production.
●With double-layer glass observation window, easy to watch the materials in the chamber.
●Two models material inner chamber mirror stainless steel and ordinary cold-rolled stainless steel.
●Air circulation system consists of low noise fans and air cycle duct to make the temperature more uniform. The reasonable air circulation ensures the temperature uniform in the inner chamber and fast warm-up time.
●High temperature resistant silicone for sealing the door, high-temperature heat pipes for the heating element to ensure safety and longer life.
●Fan forced convection for 101 series oven air circulation.
