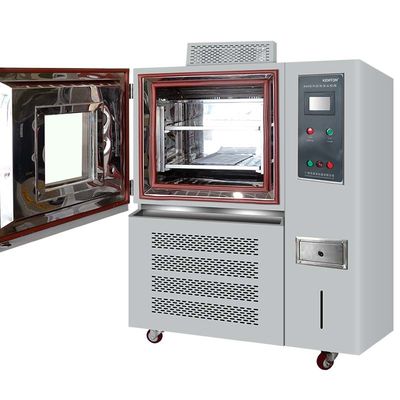

Product Details:
|
| Product Name: | Environmental Temperature Humidity Chamber | Temp Range℃: | -40~150 |
|---|---|---|---|
| Dimension: | 550*450*500 | Material: | 304 Stainless Steel |
| Volume: | 100L | Voltage: | 220 |
| Power: | 2.5 | Fluctwation: | ±0.5% |
| High Light: | 150C Temperature Humidity Chamber,Temperature Humidity Chamber 100L,100L Environmental Stability Chamber |
||

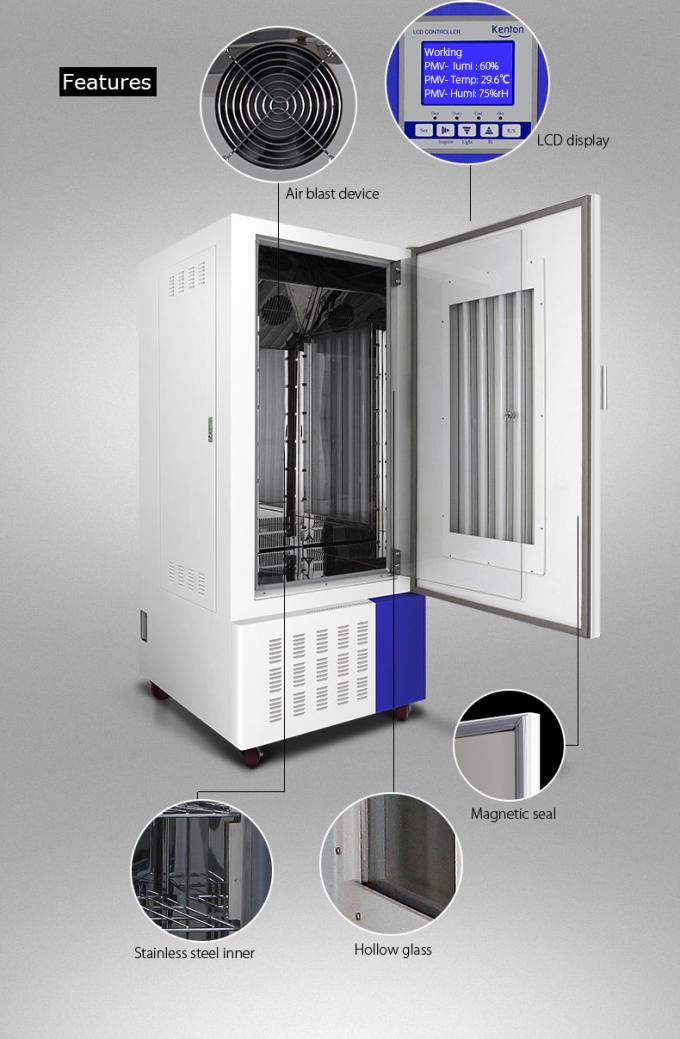

Performance characteristics:
1.It has a wide range of temperature and humidity regulation, which can meet various needs of users.
2. It adopts a balanced temperature regulation mode, reach a ideal temperature environment.it has stable balanced heating to carry out high-precision and stable temperature control, timer and overtemperature alarm function.
3.The test chamber has the performance of automatically selecting the running cold circuit with the set value of temperature. Simple operation. The equipment has the function of overpressure protection compressor.
4. big observation window, which is convenient to observe the test state of the sample
5. The double-layer door seal structure ensures that the energy in the cavity is not easy to dissipate.
High&low temperature test chamber(WGD series): suitable for basic environmental regulations to electrical and electronic products.
Test A: Low temperature test method, Test B: High temperature test method. Conduct low temperature and high temperature tests on products. test chamber adopts the most advanced temperature control mode and balanced temperature regulation mode, so it can automatically obtain the reliable and accurate test temperature from high temperature to low temperature or from low temperature to high temperature.
Environmental chamber(WGD-SJ series): It has a wide range of temperature and humidity regulation and control to meet the basic environmental test procedures for electrical and electronic products. Test A: Low temperature test method, Test B: High temperature test method.Test C:humidity test method,Test D:alternative temperature and humidity test method.
Specification:
RG series
Product introduction:

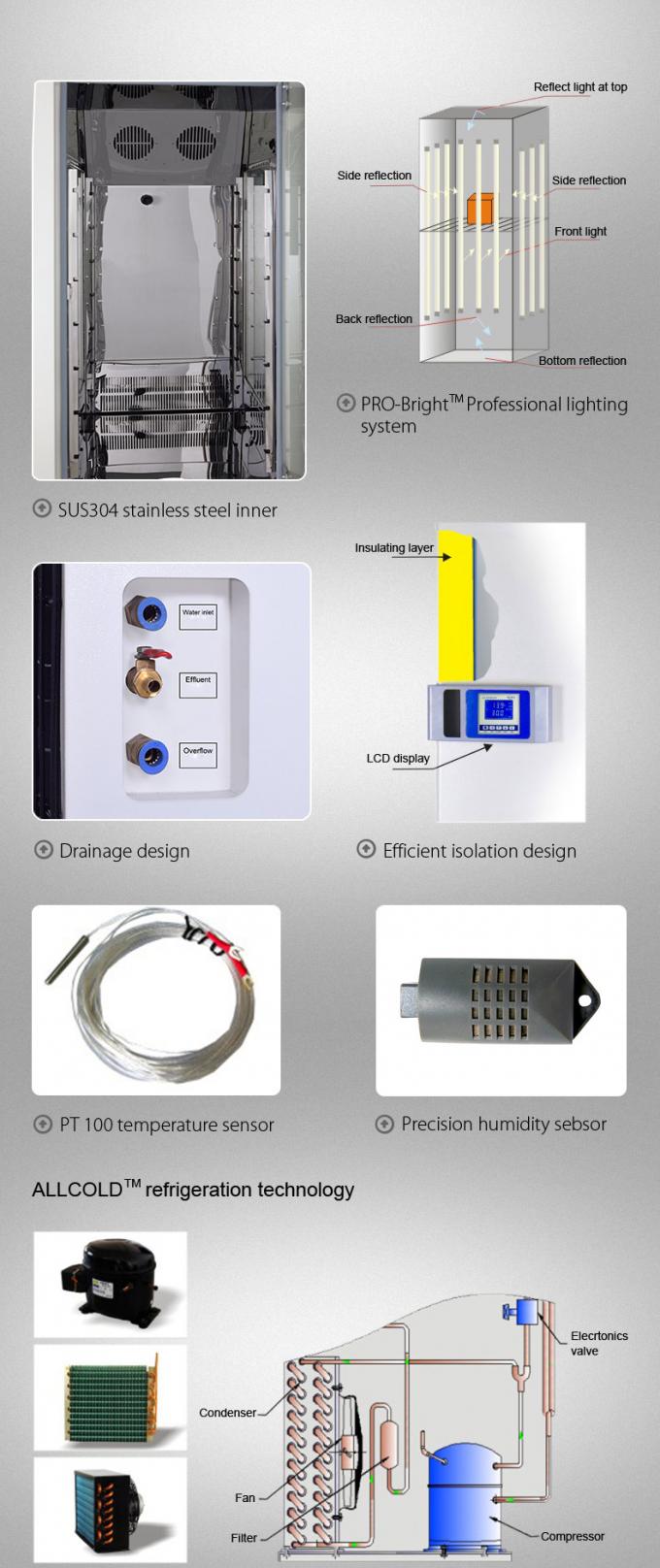

●World famous compressor: balanced refrigeration technology, auto defrost, multiple security system, long time running, environmental protection, high efficiency and energy saving.
●Auto-defrost function: original rapid heat pump defrost technology, for continuous operation, effectively prevent frost because of continuous operation of evaporator.
●Refrigeration effect manual control system: meet customer’s terrible work environment.
●Imported DuPont SUVA R134 an environmental refrigerant. For cleaner world, for better work condition.
●To save energy, to reduce the cost.
Technical Parameters:

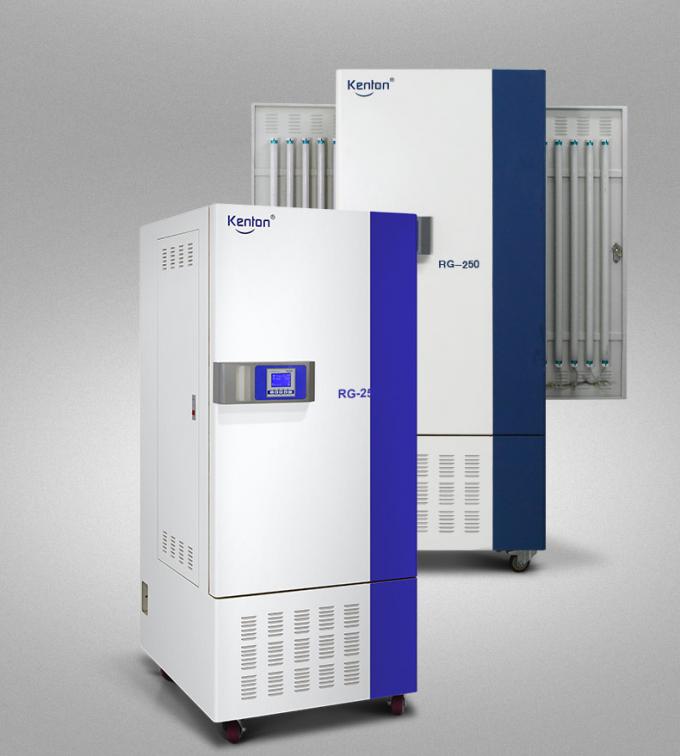

| Product model | ALLIGENT-RG Climate Simulation Chamber |
||
| RG-250 | RG-300 | RG-400 | |
| Convection Mode | Forced Convection | ||
| Control System | Thirty stages Microprocessor PID controller | ||
| Temp. range | 10~65℃(with lighting)/0~60℃(without lighting) | ||
| Temp. Accuracy | 0.1 | ||
| Temp. Fluctuation (10-40℃) |
±1 | ||
| Temp. Uniformity(10-40℃) | ±1 | ||
| Humidity Range | Humidity Range:50~90%RH,Humidity Fluctuation:±3%RH | ||
| Illumination Range | 0~15000(five stages adjustable) | ||
| Timer Range | 0～99 Hours,0～9999 minutes,can be choose | ||
| Working environment | Ambient temperature:10~30℃, Humidity<70% | ||
| Insulation materials | Imported environmental protection type material | ||
| External Dimensions (H×W×D) | 1780×710×775 | 1780×770×815 | 1828×783×905 |
| Internal Dimensions (H×W×D) | 1100×480×480 | 1100×540×520 | 1148×554×610 |
| Interior Volume(L) | 250 | 300 | 400 |
| Interior steel materials | Interior steel materials | ||
| Power Consumption (W) | 1350 | 1350 | 1550 |
| Power supply | AC220V/50Hz | ||
| Net Weight(KG) | 162 | 183 | 194 |
| Shipping Weight(KG) | 172 | 198 | 214 |
| Shipping Dimensions(H×W×D) | 1965×800×900 | 1965×860×940 |
2017×880×1060
|
