Product Details:
|
| Product Name: | Vacuum Drying Chamber | Warranty: | 2-3 Years |
|---|---|---|---|
| After-sales Service Provided: | Online Support,Video Technical Support | Voltage: | AC220V/110V |
| Weight: | 60kg,80KG,120kg | Dimension(l*w*h): | 40*41.5*35cm,48.5×44×42.5cm |
| Power(w): | 2300W,1500W,900W | Application: | Food Processing,Chemicals Processing,Plastics Processing |
| Material: | SS304/SS316L | Heating Source: | Electricity |
| Vacuum Degree: | <133Pa | ||
| High Light: | SS316L Vacuum Drying Chamber,130LVacuum Drying Chamber,2300W Vacuum Drying Equipment |
||
Vacuum Drying Equipment Vacuum Drying Chamber For Laboratory With 20-130L
Vacuum Drying oven widely used in biochemical, chemical and pharmaceutical, health care, agricultural research, environmental protection and other research applications for powder Drying and roasting, as well as disinfection and sterilization of glass containers used.
Technology advantage:
The vacuum environment greatly reduces the boiling point of the liquid to be removed, so vacuum drying can be easily applied to heat sensitive substances. For samples that are not easy to dry, such as powder or other granular samples, vacuum drying can effectively shorten the drying time.

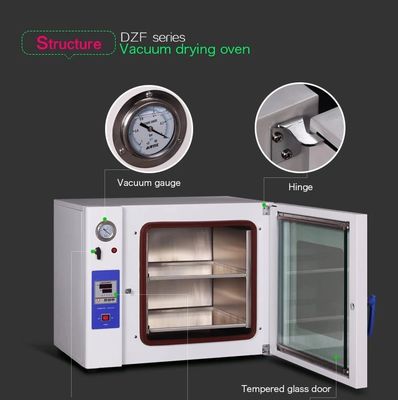

Structure features:
Optional parts

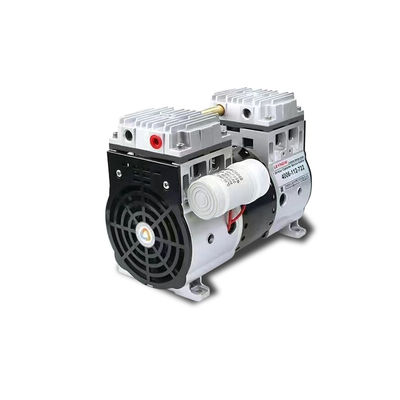

1,vacuum pump
2,individual temperature limit
| Model | Voltage V | Temp.range℃ | timer | Accuracy ℃ | Vacuum degreePa | powerKW |
Interior(mm) (H×W×D) |
Exterior(mm) (H×W×D) |
包装尺寸(mm) (H×W×D) |
N.WKG |
| DZF-6020(S) | 220 | 50~200 | 0~999分钟 | ±1 | ＜133 | 0.8 | 280×300×300 | 450×635×465 | 570×720×545 | 42.5 |
| DZF-6050(S) | 1.2 | 400×415×350 | 570×750×515 | 690×830×600 | 65 | |||||
| DZF-6090(S) | 2.4 | 485×440×425 | 620×780×600 | 740*900*710 | 80 | |||||
| DZF-3020S | 0.8 | 315×265×280 | 450×635×465 | 570×720×545 | 45 | |||||
| DZF-3050S | 1.2 | 400×370×350 | 570×750×515 | 690×830×600 | 68 | |||||
| DZF-3090S | 2.4 | 485×400×425 | 620×780×600 | 740*900*710 | 85 | |||||
| DZF-5020S | 1 | 280×265×245 | 450×635×465 | 570×720×545 | 43 | |||||
| DZF-5050S | 1.4 | 370×370×315 | 570×750×515 | 690×830×600 | 66 | |||||
| DZF-5090S | 2.4 | 455×440×390 | 620×780×600 | 740*900*710 | 81 |
The modes with “S” is stainless steel inner
Comparison for vacuum oven DZF and KZ series.
| Vacuum oven |
KZ-G High-end version |
KZ | DZF-60/S basic |
DZF-30S Individual Shelf heating |
DZF-50S 4 sides heating |
| controller | |||||
| PID LCD | ● | ● | |||
| PID Digital | ● | ● | ● | ||
| Chamber material | |||||
| SUS304 St.steel | ● | ● | ● | ● | |
| 201 St.steel | “S”● | ||||
| Zinc-plated steel | No“S”● | ||||
| Brand accessories | |||||
| ST bi type thyristor | ● | ● | |||
| Philip chip | ● | ● | |||
| Taiwan opitcal coupler | ● | ● | |||
| Taiwan original magnetic valve | ● | ||||
| Original vacuum sensor | ● | ||||
| Vacuum degree display | |||||
| LCD screen | ● | ||||
| Digital | |||||
| pointer | ● | ● | ● | ● | |
| Heating element | |||||
| 304 St.steel | ● | ● | |||
| 201 St.steel | “S”● | ● | ● | ||
| Carbon steel | no“S”● | ||||
| Vacuum control | |||||
| automatic | ● | ||||
| manual | ● | ● | ● | ● | |
| Pressure-suspension protection device | ● | ||||
| Individual shelf heating | ● | ||||
| 4 sides heating | ● | ||||
| RS232 PORT | ● | ● | |||
| Remote control monitor | ● | ● | |||
| S.H-Transfer | ● | ● | |||
| ALLHEAT chamber preheating | ● | ● | ● | ||
| ALLSENS temp.control | ● | ● | |||
| Insulation technology | ● | ● | |||
| Insulation layer | Glass fiber | Glass fiber | Rock wool | Rock wool | Rock wool |
| Temp.range℃ | 50-250 | 50-250 | 50-200 | 50-200 | 50-200 |
| Temp.accuracy℃ | ±0.1 | ±0.1 | ±0.5 | ±0.5 | ±0.5 |
| concentration | ±0.5% | ±0.5-1% | ±1% | ±1% | ±1% |
| timer | ● | ● | ● | ● | ● |
| Over-temp.alarm | ● | ● | ● | ● | ● |
| warranty | 3 years | 3 years | 2 years | 2 years | 2 years |
