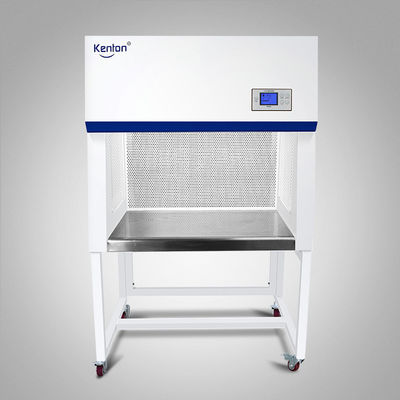

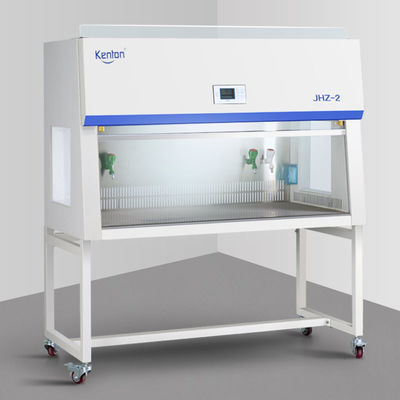

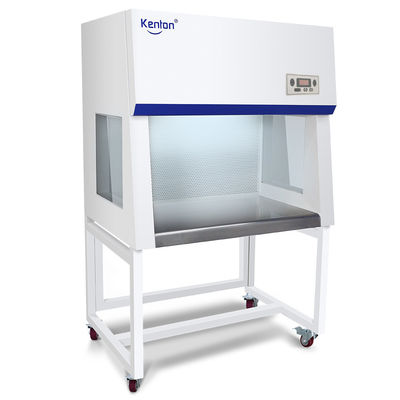

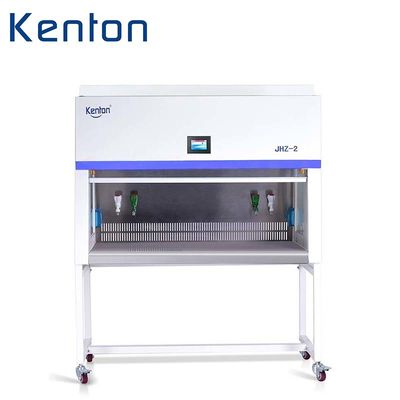

99.99% Hepa Laminar Air Flow Cabinet Hood Vertical Horizontal For Tissue Culture Microbiology

99.99% Hepa Laminar Flow Hood Vertical horizontal Air Flow Cabinet For Tissue Culture Microbiology



JH series Super laminar flow hood

Technical parameters

Remarks:Vertical airflow series can be custom-made to single sided and double sided.


Optional accessories
1, timed sterilization system;
2, the filter failure alarm procedures;
3, programmable UV sterilization control procedures;
4, can be equipped with the ULPA ultra-high efficiency filter (rejection rate of up to 99.999%)

• All technical data in the no-load conditions, ambient temperature is 25 ℃, relative humidity is 50% RH, the voltage fluctuation is ± 10% around without obvious vibration and dust conditions to test.
• KENTON may change the above technical parameters at any time. There is deviation about product appearance due to some factors such as the photographic or printed result, please understand and reserves the final right of interpretation.


Meet international standard:
Products standard: NSF 49; EN12469
Temperature safety standards:Germany DIN 12880 Class 3.1
Electrical safety standards: International IEC61010-1
US UL61010-1
EU EN61010-1


JH
Laminar flow hood 3-years warranty

• Applicable in the field of protection of the needs of the biotechnology, pharmaceutical, life sciences and precision electronic products;
• CLEANFLOW-JHl Series Clean Bench combined with perfect airflow mechanical design for the operator to create a partial purification of the work environment so that experiments can be carried out smoothly;
• Comply with Australia AS1386.5 and the European Union EN12469 standard, clean grade of the international ISO14644.1 standard CLASS (U.S. Federal 209E, 100 level)
• IQ, OQ, PQ and other related certification services.
• CE certification. Three-year warranty period.

SANGMA^TM micro-computer control technology

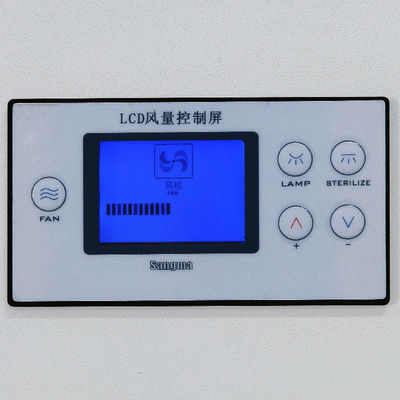

• Integrated LCD dot matrix LCD display, real-time display the status of lighting, sterile, air flow and other parameters.
• User-friendly design, with sterilization, lighting, interlock functions to protect the operator from UV light burns, and ensure safe operation.
• Wind speed multi-level adjustable, the air volume can be adjusted according to the user.

CLEANFLOW^TM clean air technology

• Centrifugal wind wheel low-power motor, based on airflow mechanics principle, arc-shaped large-diameter inlet design to reduce turbulence generated to ensure low noise operation of the system.
• Reasonable duct design, optimized net press box, with micro-mesh design layer outflow wind deflector, convex, no dead ends, to ensure the uniformity and stability of the airflow.

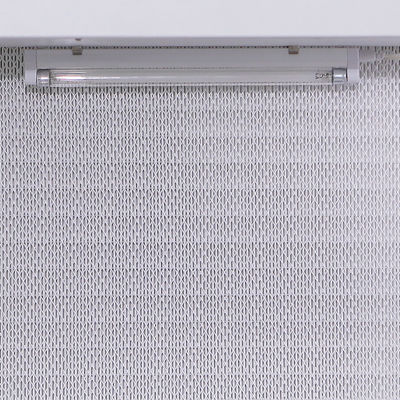

• Standard early-efficient and efficient double-filter, primary filter to avoid airflow dust particles to enter and extend the life of high efficiency filter. High efficiency filter without clapboard HEPA, retention efficiency of 99.99%.
• According to the customer's requirements, CLEANFLOW^TM series with the vertical flow and horizontal airflow

• The front overall tilt design, low noise operation, increase operation comfort;
• Operating room standard with gas water interface, splash-proof power outlet to facilitate the experiments carried out smoothly;

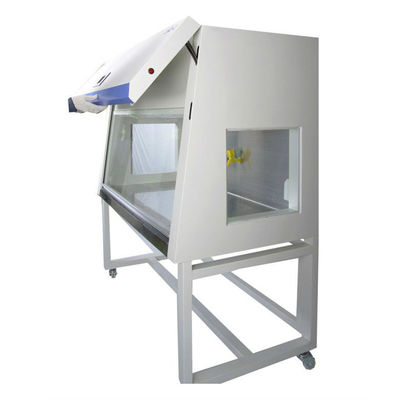

• With weight up and down sliding front door, can be anchored;
• Built-in lighting system to provide the best illumination angle and brightness, reduce visual fatigue;
• On both sides of translucent double-glazed side windows, to enhance the light permeability, and non-convex design of the work area, no death and no spoiler design.
• The platform using an anti-corrosion resistance of SUS304 stainless steel plate forming the front of the arc-shaped design, and increase operator comfort.

KENTON^®
KENTON APPARATUS LTD. Was found in 1999, production plant was set in Guangzhou,China.It is mainly engaged in production,sales and export of laboratory thermostatic equipment and biological scientific equipment,and has provided high-quality products and services for professional laboratories and scientific research.institutions at domestics and abroad for many years.
We relies on an international professional R & D team to keep the design and technology of products in step with the world and constantly seek breakthroughs.
Since its establishment, the company has been focusing on thermostatic equipment products in related fields. Now it is a high-tech enterprise integrating science, industry and trade. Its business covers China, Southeast Asia, America, Europe, Australia and other countries.
At the same time, based on the business philosophy of "walking with scientific researchers", and taking advantage of the company's geographical advantages, the company has carried out extensive communication and exchange with scientific researchers in different regions for many years, and carried out long-term follow-up services to users, constantly improving the function and quality of products, so that products can meet the requirements of users.
