Product Details:
|
| Product Name: | Resistance Furnace | Voltage V: | 220/380 |
|---|---|---|---|
| Power KW: | 4,5,8 | Temp Range ℃: | 1000/1200 |
| Net Weight (KG): | 155,235 | Shiping Weight (KG: | 180,250 |
| Warranty: | 2 Years | After-sales Service Provided: | Video Technical Support |
| High Light: | High Temperature 1200c Muffle Furnace,Heating Resistance Muffle Furnace |
||

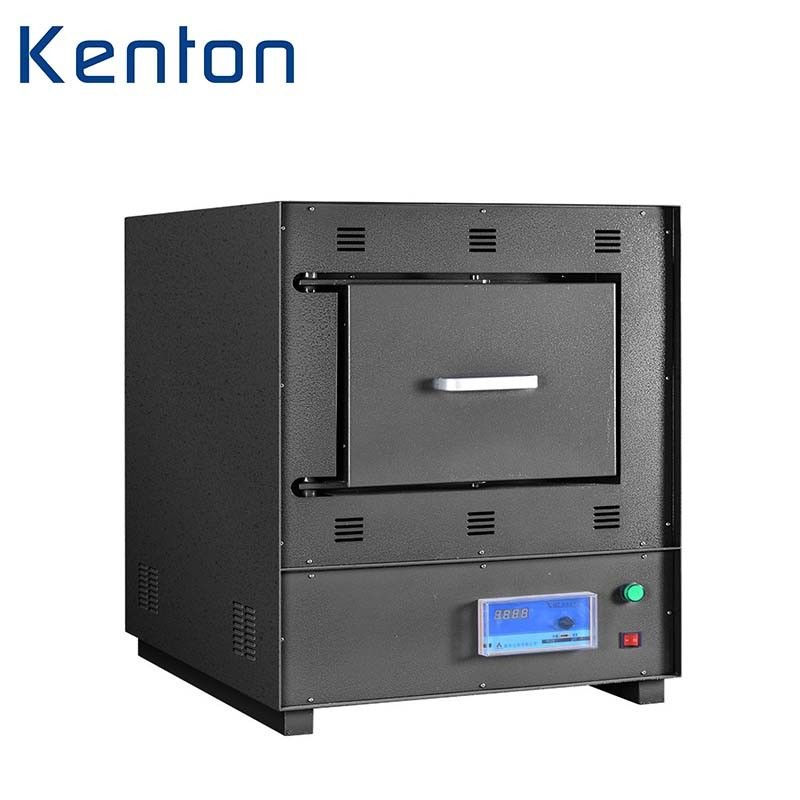

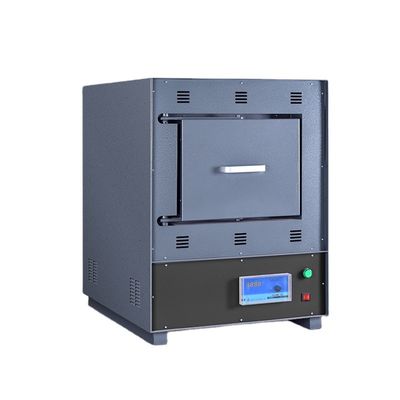

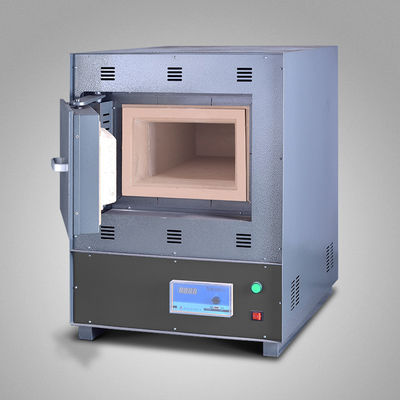

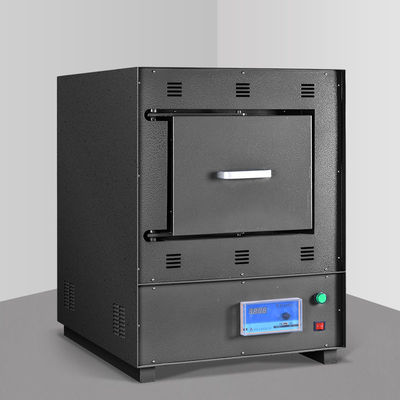

CE Certificate High Temperature 1200c Lab Muffle Furnace Electric Heating Resistance Furnace
Muffle Furnace Heating Melting Box Type Resistance Furnace 1000/1200℃
Application:
This series of muffle furnace can be used for element analysis and determination in laboratories, industrial and mining enterprises and scientific research institutions and for heat treatment and heating such as quenching, annealing and tempering of general small steel parts. The high-temperature furnaces can also be used for high-temperature heating such as sintering, dissolution and analysis of metals and ceramics
SXII structure type:

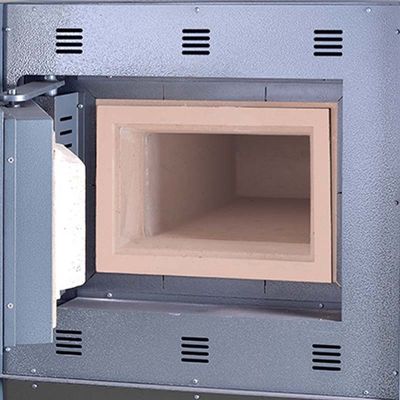

New type of high temperature resistant materials studio for furnace, heating element adopts special nickel-chrome filament production.
The control component is arranged in the lower part of the furnace, to avoid damage caused by high temperature electrical components.

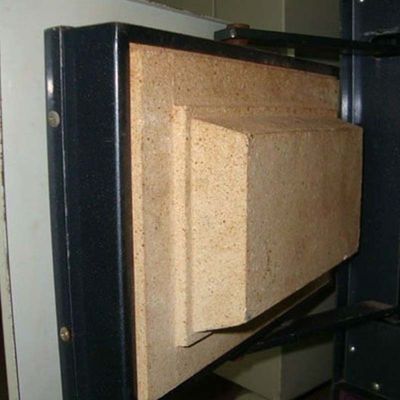

The furnace and the furnace shell with high density insulation materials, special insulation design, more efficient
Porous heat dissipation design of the shell makes the surface temperature of the furnace shell low
Digital display of temperature control system, microcomputer intelligent PID control technology, high temperature control accuracy, and over temperature alarm function
Technical Parameters:
| model | Msx temp.℃ | voltage |
Power KW |
Internal size(mm) (H×W×D) |
External size(mm) (H×W×D) |
Packing size(mm) (H×W×D) |
N.W KG |
G.W KG |
| SXⅡ-2.5-10 | 1000 | 220V | 2.5 | 80×120×200 | 560×410×490 | 680×490×570 | 72 | 82 |
| SXⅡ-4-10 | 1000 | 4 | 120×200×300 | 640×490×630 | 760×570×710 | 106 | 119 | |
| SXⅡ-5-12 | 1200 | 5 | 120×200×300 | 640×490×630 | 760×570×710 | 106 | 119 | |
| SXⅡ-8-10 | 1000 | 380V | 8 | 160×250×400 | 780×580×770 | 900×660×850 | 149 | 162.5 |
| SXⅡ-8-12 | 1200 | 8 | 160×250×400 | 780×580×770 | 900×660×850 | 149 | 162.5 |
