Product Details:
|
| Product Name: | Climatic Chamber | Selling Point: | Shelf Lighting Lamp |
|---|---|---|---|
| Volume（L）: | 250 | Humidity: | 40%~95% |
| Timer: | 0~999min | Accuracy（℃）: | ±0.1 |
| Fluctuation（%）: | ±0.5 | After-sales Service Provided: | Video Technical Support |
| High Light: | Constant Temperature And Humidity Climatic Chamber,High Low Temperature Climatic Chamber,Climatic Chamber 250L |
||

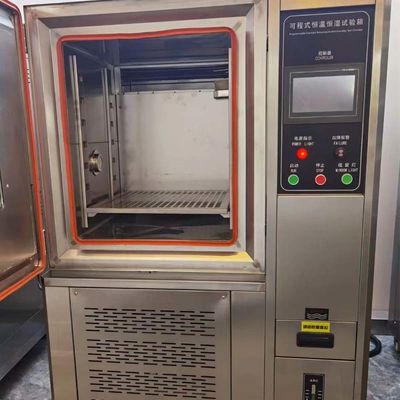

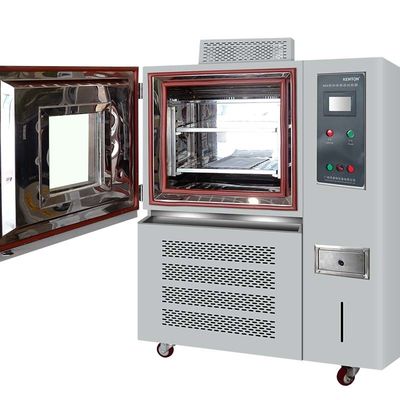

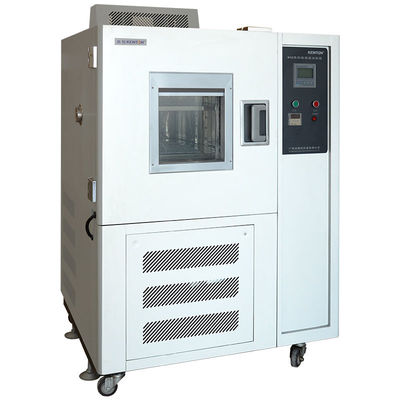

Constant Temperature and Humidity Test Chamber Climatic Chamber Tester High Low Temperature Chamber
LRH series Fluorine free R134A refrigeration,balance cooling system
Application:
It is a standing equipment for scientific research and universities such as environmental protection, sanitation and epidemic prevention, drug inspection, agriculture and livestock, aquatic products, etc. it is also widely used in bioengineering, water analysis, industrial product performance test and other fields.
Structure features:
Balanced refrigeration makes the temperature fluctuation small, integrates automatic defrosting and multi-layer safety protection to meet the needs of long-term operation. It is equipped with internationally famous brand compressors with delay protection function and operates smoothly
Green environmental protection concept, using fluorine-free R134 refrigerant to make the system more energy-saving and efficient, and make the environment healthier
Reasonable air duct circulation system to ensure uniform temperature of working room；

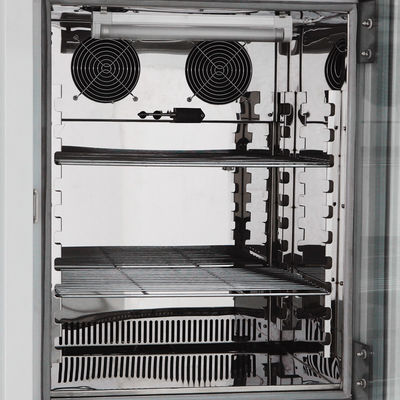

mirror stainless steel interior, and the shelf spacing and the number of shelves can be adjusted. The internal socket is equipped as standard

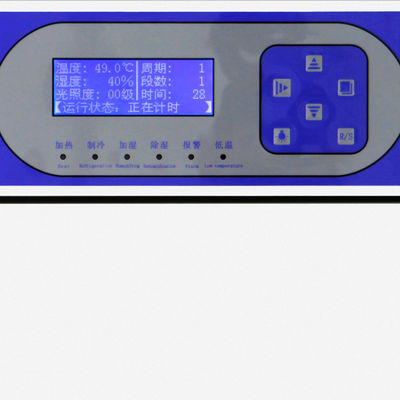

upgraded LCD screen and programmable microcomputer intelligent PID control technology to keep the temperature and humidity accurate and constant. Touch type parameter setting button, with timing and over temperature alarm functions.
The humidification component adopts a built-in large capacity intelligent humidification system with an automatic water replenishment tank, which is convenient for use.
double door design,light device inside.(for humidity chamber)
UV lamp function makes the working chamber sterile(for MJ series)
| Model |
Temp range (℃) |
Accu racy (℃) |
Timing range | Fluct uation (%) |
Voltage (V) |
Power (KW) | Inner size(mm)(H*W*D) |
Overall dimension (mm) (H*W*D) |
Packing size(mm) (H*W*D) |
Net weight(KG) |
Shiping weight (KG) |
| LRH-100S(MJ) | 0~60 | ±0.5 |
0~999 min |
±1 | 220 | 0.4 | 580×450×380/100L | 1100×590×620 | 1220×670×700 | 100 | 120 |
| LRH-150S(MJ) | 0.6 | 800×500×380/150L | 1350×640×660 | 1470×720×740 | 110 | 140 | |||||
| LRH-250S(MJ) | 0.8 | 1000×550×450/250L | 1550×690×660 | 1670×770×740 | 140 | 165 |
Optional accessories:
1. portable printer
2. RS232 port
3. test hole
| SH/SH-MJ | WS/WS-MJ | LC | RG | SPX/SPX-MJ | LRH/LRH-MJ | GZP | PQH | |
| Controller | ||||||||
| 30 programmable control system | ● | ● | ● | |||||
| PID LCD | ● | ● | ● | ● | ● | ● | ● | |
| PID Digital | ● | |||||||
| Chamber material | ||||||||
| SUS304 St.steel | ● | ● | ● | ● | ● | ● | ● | |
| 201 St.steel | ● | |||||||
| Motor fan | ||||||||
| High temperature resistant bearing | ● | ● | ● | ● | ||||
| Heat element | ||||||||
| SUS304 St.steel | ● | ● | ● | ● | ||||
| 201 St.steel | ● | ● | ● | ● | ||||
| RS232 port | ● | ● | ● | ● | ||||
| Remote control | ● | ● | ● | ● | ||||
| ALLCOLD balanced refrigeration | ● | ● | ● | ● | ● | ● | ● | |
| ALLFLOW circulation | ● | ● | ● | ● | ||||
| ALLSENS temp.control | ● | ● | ● | ● | ||||
| ALLIGENT humidification | ● | |||||||
| Pro-Bright light system | ● | ● | ||||||
| Save energy insulation | ● | ● | ● | ● | ||||
| UV function | “MJ”● | “MJ”● | “MJ”● | “MJ”● | ||||
| Refrigeration capacity control | ● | ● | ● | ● | ||||
| Brand accessories | ||||||||
| Brand compressor | ● | ● | ● | ● | ● | ● | ● | |
| DUPONT SUVA-R134 | ● | ● | ● | ● | ● | ● | ● | |
| ST bi type thyristor | ● | ● | ● | ● | ||||
| Philip chip | ● | ● | ● | ● | ||||
| Taiwan opitcal coupler | ● | ● | ● | ● | ||||
| SENSIRION sensor | ● | ● | ● | ● | ||||
| Auto defrost | ● | ● | ● | ● | ||||
| Cut-off memory | ● | ● | ● | ● | ||||
| Door seal material | Silicone+magnetic | magnetic | Silicone+magnetic | |||||
| insulation | polyurethane | polyurethane | ||||||
| Temp.accuracy℃ | ±0.1 | ±0.1 | ±0.1 | ±0.1 | ±0.5 | ±0.1 | ±0.1 | ±0.1 |
| Temp.fluctuation | ±0.5% | ±0.5% | ±1% | ±1% | ±1% | ±0.5% | ±1-1.5% | ±1-1.5% |
| humidification | ● | ● | ● | ● | ||||
| Humidity fluctuation | ±2% | ±3% | ±3% | ±5% | ||||
| Light function | ● | ● | ● | ● | ||||
| timer | ● | ● | ● | ● | ● | ● | ● | ● |
| Over-temperature alarm | ● | ● | ● | ● | ● | ● | ● | ● |
| warranty | 3 years | 2 years | ||||||
