Product Details:
|
| Product Name: | Vacuum Drying Oven | Special: | Each Shelf Temperature Control |
|---|---|---|---|
| Volume: | 90L | Power (KW): | 2.4 |
| Voltage (V): | 220 | Accu Racy (℃): | ±0.5 |
| Inner Size (mm) (H*W*D): | 480*400*425 | Overall Dimension (mm) (H*W*D): | 620*780*600 |
| High Light: | Laboratory Vacuum Oven 90L,SS High Temperature Laboratory Vacuum Oven |
||

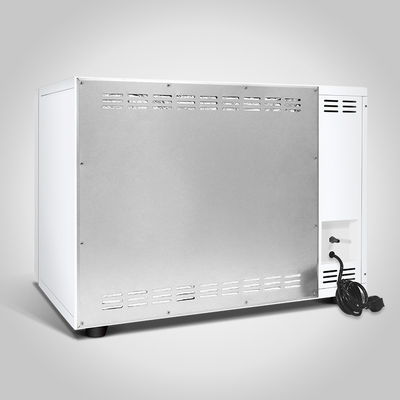

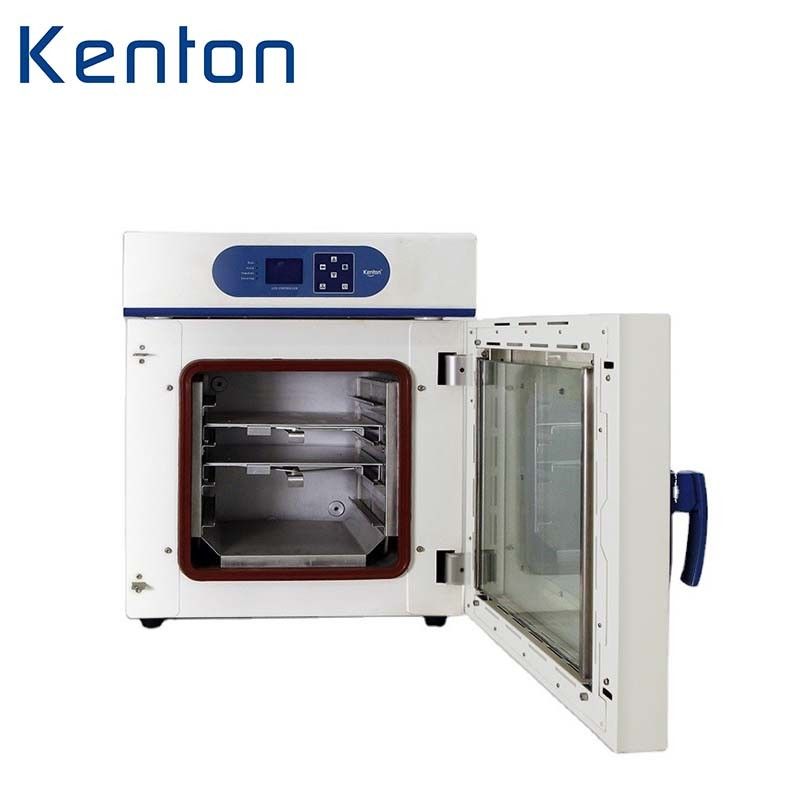

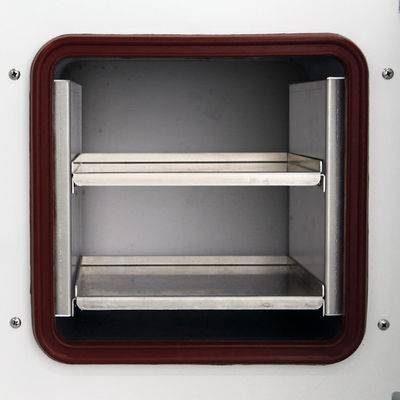

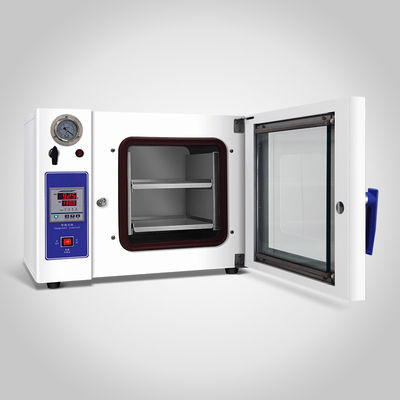

Stainless Steel High Temperature Laboratory Vacuum Oven High Temperature Drying Oven
Optional parts

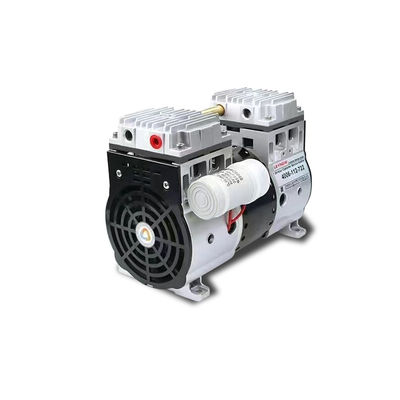

1,vacuum pump
2,individual temperature limit
| Model | Voltage V | Temp.range℃ | timer | Accuracy ℃ | Vacuum degreePa | powerKW |
Interior(mm) (H×W×D) |
Exterior(mm) (H×W×D) |
Packaging size(mm) (H×W×D) |
N.WKG |
| DZF-6020(S) | 220 | 50~200 |
0~999 min |
±1 | ＜133 | 0.8 | 280×300×300 | 450×635×465 | 570×720×545 | 42.5 |
| DZF-6050(S) | 1.2 | 400×415×350 | 570×750×515 | 690×830×600 | 65 | |||||
| DZF-6090(S) | 2.4 | 485×440×425 | 620×780×600 | 740*900*710 | 80 | |||||
| DZF-3020S | 0.8 | 315×265×280 | 450×635×465 | 570×720×545 | 45 | |||||
| DZF-3050S | 1.2 | 400×370×350 | 570×750×515 | 690×830×600 | 68 | |||||
| DZF-3090S | 2.4 | 485×400×425 | 620×780×600 | 740*900*710 | 85 | |||||
| DZF-5020S | 1 | 280×265×245 | 450×635×465 | 570×720×545 | 43 | |||||
| DZF-5050S | 1.4 | 370×370×315 | 570×750×515 | 690×830×600 | 66 | |||||
| DZF-5090S | 2.4 | 455×440×390 | 620×780×600 | 740*900*710 | 81 |
The modes with “S” is stainless steel inner
DZF-60 series: 2 sided heating
DZF-50 series: 4 sided heating
DZF series:
Scope:
Vacuum Drying oven widely used in biochemical, chemical and pharmaceutical, health care, agricultural research, environmental protection and other research applications for powder Drying and roasting, as well as disinfection and sterilization of glass containers used.
Technology advantage:
The vacuum environment greatly reduces the boiling point of the liquid to be removed, so vacuum drying can be easily applied to heat sensitive substances. For samples that are not easy to dry, such as powder or other granular samples, vacuum drying can effectively shorten the drying time.
Structure features:
Comparison for vacuum oven DZF and KZ series.
| Vacuum oven |
KZ-G High-end version |
KZ | DZF-60/S basic |

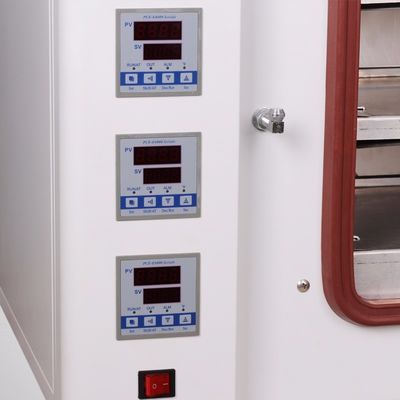

DZF-30S Individual Shelf heating |
DZF-50S 4 sides heating |
| controller | |||||
| PID LCD | ● | ● | |||
| PID Digital | ● | ● | ● | ||
| Chamber material | |||||
| SUS304 St.steel | ● | ● | ● | ● | |
| 201 St.steel | “S”● | ||||
| Zinc-plated steel | No“S”● | ||||
| Brand accessories | |||||
| ST bi type thyristor | ● | ● | |||
| Philip chip | ● | ● | |||
| Taiwan opitcal coupler | ● | ● | |||
| Taiwan original magnetic valve | ● | ||||
| Original vacuum sensor | ● | ||||
| Vacuum degree display | |||||
| LCD screen | ● | ||||
| Digital | |||||
| pointer | ● | ● | ● | ● | |
| Heating element | |||||
| 304 St.steel | ● | ● | |||
| 201 St.steel | “S”● | ● | ● | ||
| Carbon steel | no“S”● | ||||
| Vacuum control | |||||
| automatic | ● | ||||
| manual | ● | ● | ● | ● | |
| Pressure-suspension protection device | ● | ||||
| Individual shelf heating | ● | ||||
| 4 sides heating | ● | ||||
| RS232 PORT | ● | ● | |||
| Remote control monitor | ● | ● | |||
| S.H-Transfer | ● | ● | |||
| ALLHEAT chamber preheating | ● | ● | ● | ||
| ALLSENS temp.control | ● | ● | |||
| Insulation technology | ● | ● | |||
| Insulation layer | Glass fiber | Glass fiber | Rock wool | Rock wool | Rock wool |
| Temp.range℃ | 50-250 | 50-250 | 50-200 | 50-200 | 50-200 |
| Temp.accuracy℃ | ±0.1 | ±0.1 | ±0.5 | ±0.5 | ±0.5 |
| concentration | ±0.5% | ±0.5-1% | ±1% | ±1% | ±1% |
| timer | ● | ● | ● | ● | ● |
| Over-temp.alarm | ● | ● | ● | ● | ● |
| warranty | 3 years | 3years | 2years | 2years | 2 years |
