Product Details:
|
| Product Name: | Hot Air Drying Chamber | Temp Range (℃): | RT+5 ~300°C |
|---|---|---|---|
| Instrument: | Digital Display | Accu Racy: | ±1 |
| Power: | 0.8~1.6KW | Material: | Stainless Steel, Galvanized Steel Sheet |
| Voltage: | 110V/60Hz Or 220V/50Hz | Warranty: | 2 Years |
| After-sales Service Provided: | Video Technical Support | Application: | Chemicals Processing,Plastics Processing,drying |
| High Light: | 50Hz Force Laboratory Hot Air Oven,Laboratory Hot Air Oven 300C,Circulating Temperature Hot Air Drying Chamber 300C |
||

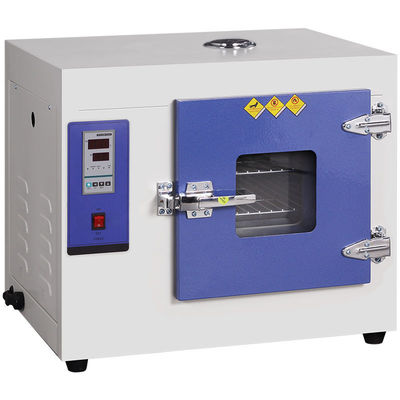

Lab Dryer Oven / Force 101 Hot Air Circulating Temperature Drying Chamber
101-AS series:
Two kind of temperature controller; pointer controller and Microcomputer intelligent controller type; an forced convection, low noise hot air circulation system; shelf space and shelf number can be adjustable; double-layer tempered glass observation window.
Suitable for industrial factory, labs, research and other departments for drying, baking, heat treatment heat, it is not for volatile, flammable, explosive and other items. In order to avoid to cause an explosion.
Suitable for routine testing of industrial and mining enterprises, basic laboratory and workshop is not recommended for a long time continuous use. The requirement of higher temperature uniformity and large water content of the sample is not recommended.
Product introduction:
●Provide for the industrial factory, labs, research and other departments for Drying, baking, melting and sterilizer use.
Features:

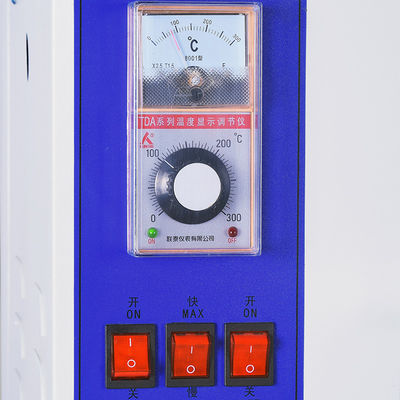

●Three kinds of controller types Pointer controller, LED microcomputer controller and Microcomputer intelligent type.
●The shell is made of high quality cold-rolled steel with metallic paint spray. Nice overall color design suitable for all research labs and workshop production.
●With double-layer glass observation window, easy to watch the materials in the chamber.
●Two models material inner chamber mirror stainless steel and ordinary cold-rolled stainless steel.
●Air circulation system consists of low noise fans and air cycle duct to make the temperature more uniform. The reasonable air circulation ensures the temperature uniform in the inner chamber and fast warm-up time.
●High temperature resistant silicone for sealing the door, high-temperature heat pipes for the heating element to ensure safety and longer life.
●Fan forced convection for 101 series oven air circulation.
Technical Parameters:
|
Model |
Voltage |
Temp (℃) |
Accu racy |
Fluct uation (%) |
Power (KW) |
Inner size (mm) (H*W*D) |
Overall dimension |
Packing size (mm) |
Net weight (KG) |
Shiping weight |
|
101-0(AS) |
110-220 |
RT+5 ~300
|
±1
|
±1 |
0.8~1.6 |
350*350*350 |
590*660*520 |
710*740*600 |
34.8 |
37.2 |
|
101-1(AS) |
110-220 |
±1 |
0.8~1.6 |
450*450*350 |
690*760*520 |
810*840*600 |
41.5 |
45 |
||
|
101-2(AS) |
110-220 |
±1 |
1.6~2.4 |
550*550*450 |
790*870*640 |
910*950*720 |
60 |
64.5 |
||
|
101-3(AS) |
110-220 |
±1 |
2~3 |
750*600*500 |
1050*980*700 |
1270*1060*780 |
80 |
84.5 |
||
|
101-4(AS) |
220-380 |
±2 |
3~4.8 |
1000*800*800 |
1300*1210*1000 |
1420*1290*1080 |
162 |
168 |
||
|
101-5(AS) |
220-380 |
±2 |
4~6 |
1000*1000*1000 |
1300*1420*1200 |
1420*1500*1280 |
189 |
197 |
The modes with “A” is LED microcomputer controller.
The modes with “S” is stainless steel inner chamber.
