Product Details:
|
| Product: | Temperature Humidity Chamber | Temp Range (℃): | 0~65 |
|---|---|---|---|
| Accu Racy (℃): | ±0.1 | Fluct Uation (%): | ±0.5 |
| Voltage (V): | 110/220 | Usage: | Universal Testing Machine,Process Testing Machine,Lab Testing Chamber,environment Testing |
| Humidity Range: | 40% ~ 95%(Can Be Customized) | Controller: | Programmable LCD Touch Screen |
| Material: | SUS 304 Stainless Steel | Warranty: | 2 Years |
| High Light: | SUS304 Constant Temperature Humidity Chamber,Temperature Humidity Chamber LRH,LRH Humidity Environmental Chamber |
||

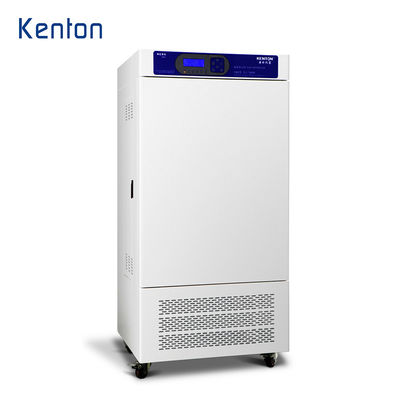

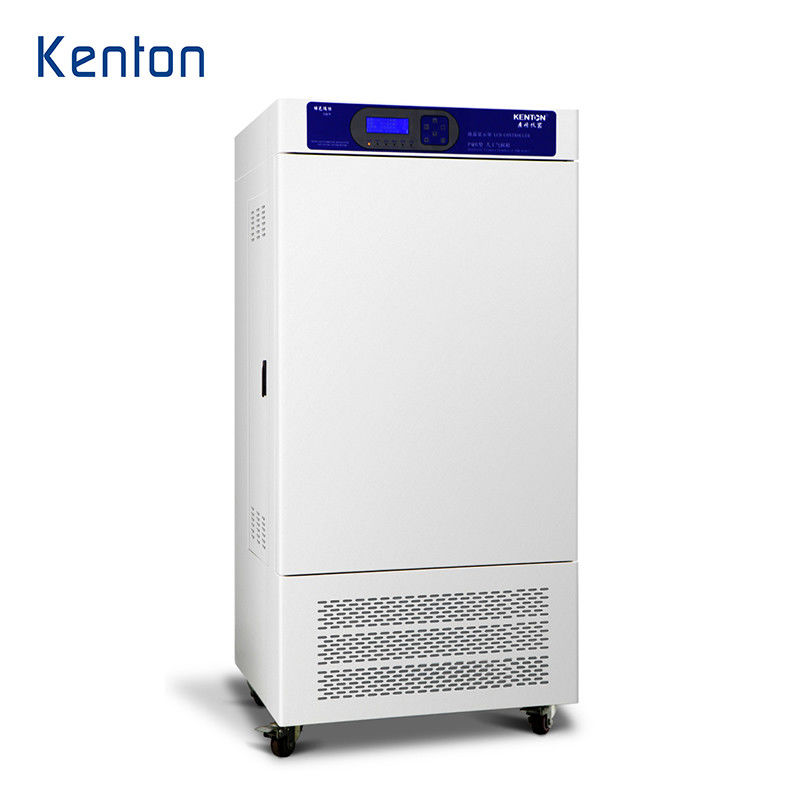

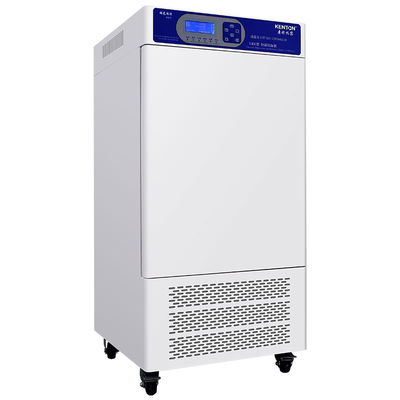

Constant Temperature Humidity Control Test Chamber LRH With SUS304 Stainless Steel
LRH-100 humidity chamber:
Product introduction:
●With constant temperature and humidity control function. It is a based equipment for environmental protection, medical, drug testing, health and epidemic prevention, livestock, aquaculture and other scientific research and college departments. Also, widely application in biological engineering and water analysis field etc.
Feature:
●The inner chamber is made of mirror stainless steel.
●Semicircular corners inner chamber is easy to clean.

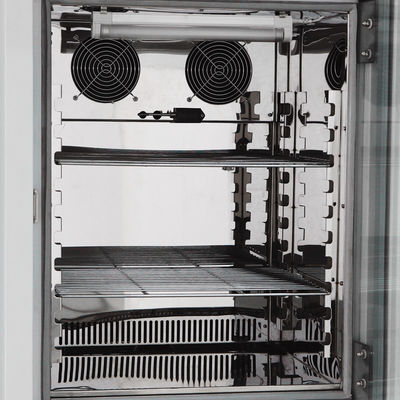

●Shelf can be adjusted.

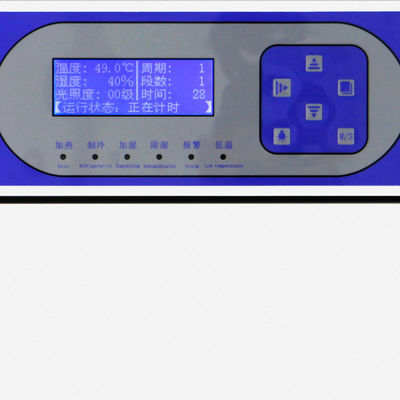

●LED microcomputer controller make the temperature and humidity constant.
●Touch key parameter setting.
●Timer, over temperature alarm function.

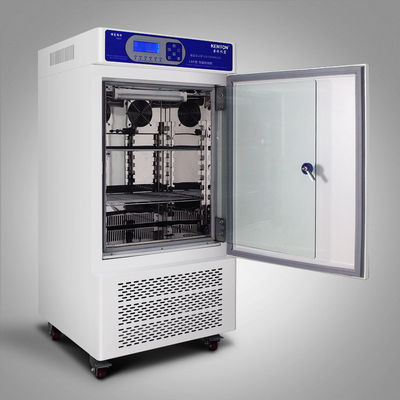

●Large angle observation window, easy to watch the goods in the inner chamber with lighting.
●Large-capacity humidifier, easy to use
Technical Parameters:
|
Model
|
Temp
range (℃)
|
Accu racy
(℃) |
Fluct uation (%)
|
Voltage
(V) |
Power (KW)
|
Inner size
(mm)
(H*W*D)
|
Overall dimension
(mm)
(H*W*D) |
Packing size
(mm)
(H*W*D)
|
Net weight
(KG)
|
Shiping weight
(KG) |
|
LRH-100S
|
0~65
|
±0.1
|
±0.5
|
110/220
|
0.4 |
580×450×380/100L
|
1100×590×620
|
1220×670×700
|
93
|
110
|
|
LRH-150S
|
0.6
|
800×500×380/150L
|
1350×640×660
|
1470×720×740
|
105
|
125
|
||||
|
LRH-250S
|
0.8
|
1000×550×450/250L
|
1550×690×660
|
1670×770×740
|
133
|
155
|
WS series
Product introduction:
●World famous compressor: balanced refrigeration technology, auto defrost, multiple security system, long time running, environmental protection, high efficiency and energy saving.
●Auto-defrost function: original rapid heat pump defrost technology, for continuous operation, effectively prevent frost because of continuous operation of evaporator.
●Refrigeration effect manual control system: meet customer’s terrible work environment.
●Imported DuPont SUVA R134 an environmental refrigerant. For cleaner world, for better work condition.
●To save energy, to reduce the cost.
Technical Parameters:
| Technical Parameters | ALLIGENT-WS Constant Climate Chamber | ||
| WS-150 | WS-250 | WS-400 | |
| Convection mode | Forced-convection | ||
| Control mode | 30 Programmable PID Control System | ||
| Sterilization function | — | ||
| Temperature range (℃) | 0~65℃ | ||
| Humidity range | 40~95%RH | ||
| Temp. display resolution(℃) | 0.1 | ||
| Temp. fluctuation(℃)(10-40℃) | ±0.5 | ||
| Temp. spatial deviation(℃)(10-40℃) | ±1 | ±1.5 | |
| Humidity fluctuation(RH) | ±2% | ||
| Timing range | 0～99Hour ,Or 0～9999min | ||
| Running environment | environment temp.10-30;relative humidity below 70% | ||
| Heat insulator | imported environmental protection material | ||
| External dimension (mm)(H×W×D) | 1410×650×680 | 1730×650×740 | 1700×745×930 |
| Dimension of inner chamber (mm) (H×W×D) |
757×508×389 | 1088×508×449 | 1052×601×639 |
| Volume of inner chamber (L) (H×W×D) | 150 | 250 | 400 |
| Material of internal surface | SUS304 Interior steel materials | ||
| Shelves | 3 | 4 | 4 |
| Rated power(W) | 1080 | 1100 | 1350 |
| Input voltage | AC220V/50Hz | ||
| Net weight (KG) | 107.5 | 136 | 158.5 |
| Gross weight (KG) | 133 | 162.5 | 188 |
| Package size(mm) (H×W×D) |
1605×760×830 | 1935×760×890 |
1907×815×1090
|
