Product Details:
|
| Product Name: | PCB Drying Oven | Temp Range (℃): | RT+5 ~300°C |
|---|---|---|---|
| Heating Rate: | About 10mins From RT To 100°C | Application: | Chemicals Processing,Plastics Processing,drying |
| Accu Racy: | ±1 | Power: | 1.6KW |
| Material: | Galvanized Steel Sheet | Voltage: | 110V/60Hz Or 220V/50Hz |
| Warranty: | 2 Years | After-sales Service Provided: | Video Technical Support |
| Highlight: | 300C Laboratory Dryer Oven,300C PCB Drying Oven,Force Air Circulating PCB Drying Oven |
||

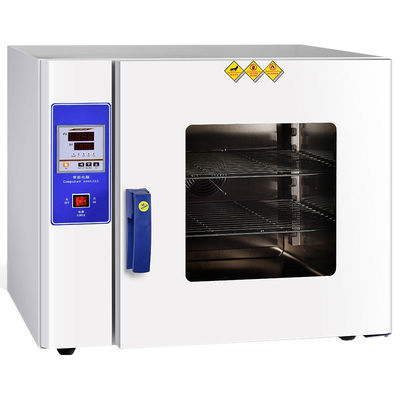

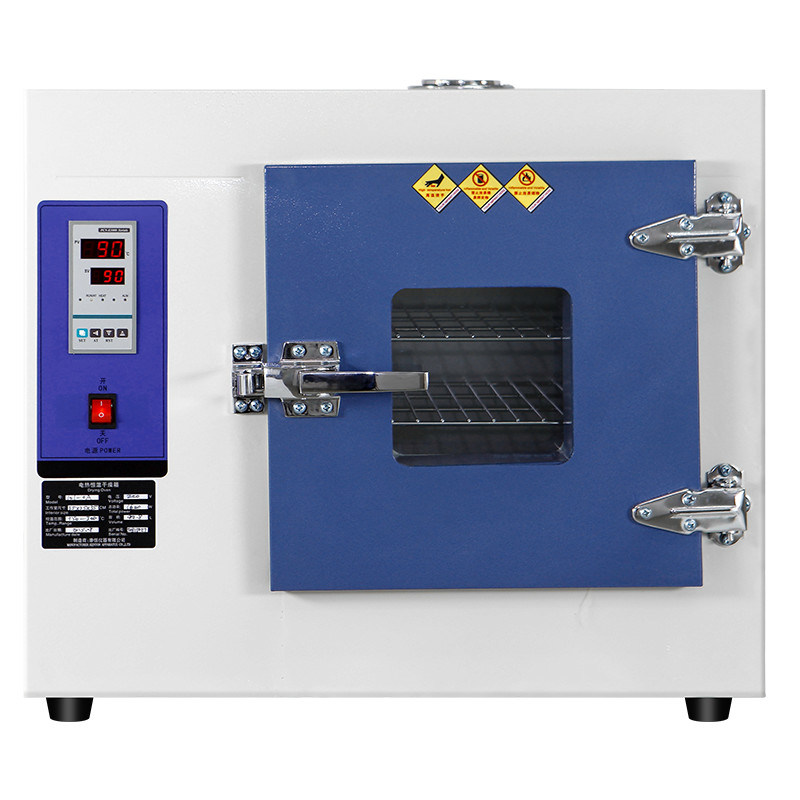

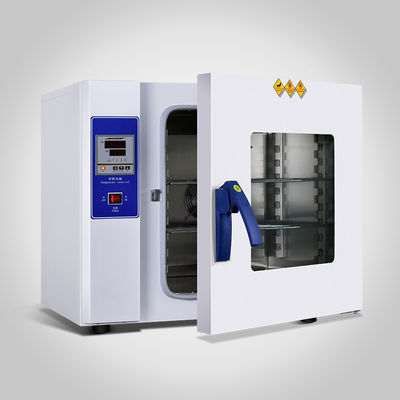

Kenton Lab Dryer Oven With 300°C Force Air Circulating PCB Drying Oven
101- series:
Product introduction:
●Provide for the industrial factory, labs, research and other departments for Drying, baking, melting and sterilizer use.
Features:

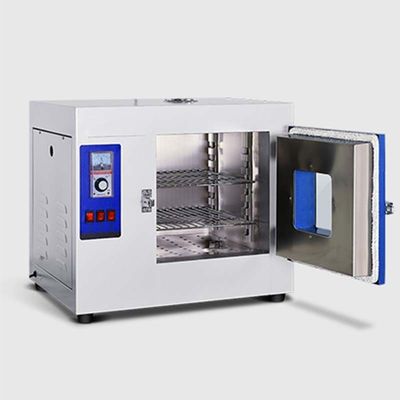

●Three kinds of controller types Pointer controller, LED microcomputer controller and Microcomputer intelligent type.
●The shell is made of high quality cold-rolled steel with metallic paint spray. Nice overall color design suitable for all research labs and workshop production.
●With double-layer glass observation window, easy to watch the materials in the chamber.
●Two models material inner chamber mirror stainless steel and ordinary cold-rolled stainless steel.

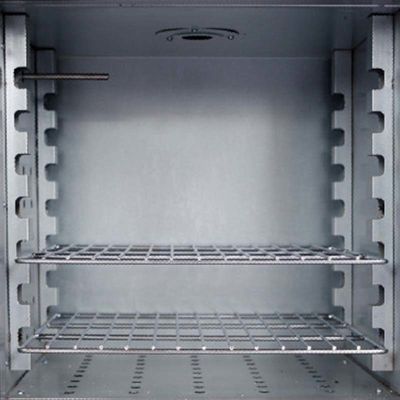

●Air circulation system consists of low noise fans and air cycle duct to make the temperature more uniform. The reasonable air circulation ensures the temperature uniform in the inner chamber and fast warm-up time.
●High temperature resistant silicone for sealing the door, high-temperature heat pipes for the heating element to ensure safety and longer life.
●Fan forced convection for 101 series oven air circulation.
Technical Parameters:
|
Model |
Voltage |
Temp (℃) |
Accu racy |
Fluct uation (%) |
Power (KW) |
Inner size (mm) (H*W*D) |
Overall dimension |
Packing size (mm) |
Net weight (KG) |
Shiping weight |
|
101-0(AS) |
110-220 |
RT+5 ~300
|
±1
|
±1 |
0.8~1.6 |
350*350*350 |
590*660*520 |
710*740*600 |
34.8 |
37.2 |
|
101-1(AS) |
110-220 |
±1 |
0.8~1.6 |
450*450*350 |
690*760*520 |
810*840*600 |
41.5 |
45 |
||
|
101-2(AS) |
110-220 |
±1 |
1.6~2.4 |
550*550*450 |
790*870*640 |
910*950*720 |
60 |
64.5 |
||
|
101-3(AS) |
110-220 |
±1 |
2~3 |
750*600*500 |
1050*980*700 |
1270*1060*780 |
80 |
84.5 |
||
|
101-4(AS) |
220-380 |
±2 |
3~4.8 |
1000*800*800 |
1300*1210*1000 |
1420*1290*1080 |
162 |
168 |
||
|
101-5(AS) |
220-380 |
±2 |
4~6 |
1000*1000*1000 |
1300*1420*1200 |
1420*1500*1280 |
189 |
197 |
The modes with “A” is LED microcomputer controller.
The modes with “S” is stainless steel inner chamber.
●Widely used in drying process, sterilization, thermostatic storage, heat treatment, other fields, the basis equipment of the laboratory and research units, but not for volatile, flammable, explosive and other items, in order to avoid to cause an explosion.

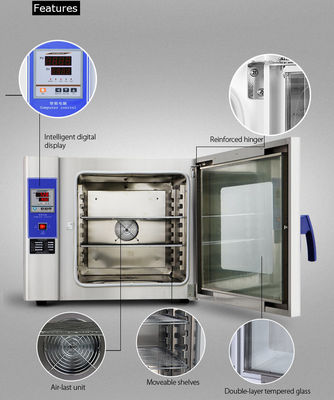

Feature:
●Precision LCD microcomputer intelligent PID control system, with temperature control, timing and over-temperature alarm, with RS485 computer interface.
●With standard international brands cooling fan maintenance - free, durability. Perfect combination of duct design to ensure temperature uniformity for the working chamber.
●Mirror stainless steel inner, anti-acid, and anti-corrosion characteristics.
Technical Parameters:
| Model |
Temp (℃) |
Accuracy (℃) |
Fluctuation (%) | Voltage (V) |
Power (KW) |
Inner size (mm) (H*W*D) |
Overall dimension (mm) (H*W*D) |
Packing size (mm) (H*W*D) |
Net weight (KG) |
Shiping weight (KG) |
| DHG-9040 |
RT+5
|
±0.1
|
±1
|
110- 220
|
1 | 320*350*350 | 530*640*550 | 650*720*630 | 36 | 39 |
| DHG-9070 | 1.2 | 420*450*350 | 630*740*550 | 750*820*630 | 47 | 50 | ||||
| DHG-9130 | 1.6 | 520*550*450 | 750*890*630 | 870*970*710 | 62 | 66 | ||||
| DHG-9230 | 2.5 | 750*600*500 | 980*965*770 | 1100*1045*850 | 96 | 105 | ||||
| DHG-9040C | ±0.5 | ±1 | 1 | 320*350*350 | 530*640*550 | 650*720*630 | 36 | 39 | ||
| DHG-9070C | 1.2 | 420*450*350 | 630*740*550 | 750*820*630 | 47 | 50 | ||||
| DHG-9130C | 1.6 | 520*550*450 | 750*890*630 | 870*970*710 | 62 | 66 | ||||
| DHG-9230C | 2.5 | 750*600*500 | 980*965*770 | 1100*1045*850 | 96 | 105 |
