Product Details:
|
| Product Name: | Drying Oven | Voltage (V): | 220 |
|---|---|---|---|
| Temp Range (℃): | RT+5 ~250 | Timing Range: | 0~999 Min |
| Accu Racy (℃): | ±0.5 | Fluct Uation (%): | ±1 |
| Power (KW): | 1 | Inner Size (mm) (H*W*D): | 350*350*350 |
| High Light: | Laboratory Dryer Oven 220V,Sterilization Laboratory Dryer Oven,220V Mini Air Dry Oven 250C |
||

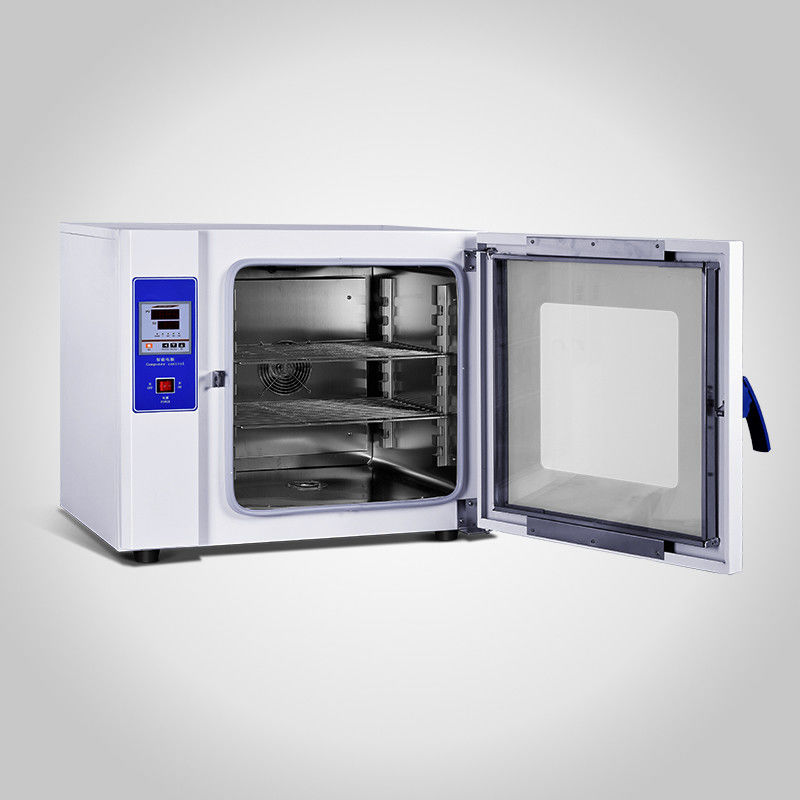

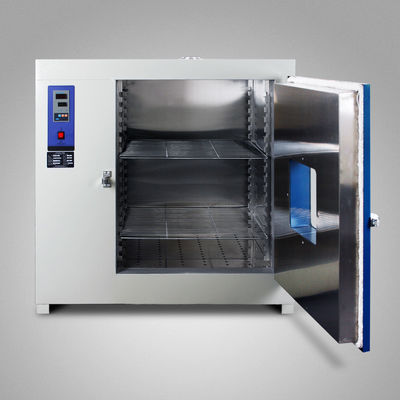

Laboratory Drying Oven for Glassware Sterilization Electric Mini Drying Oven
KH-T series:
Suitable for routine testing of industrial and mining enterprises, basic laboratory and workshop is not recommended for a long time continuous use. The requirement of higher temperature uniformity and large water content t of the sample is not recommended.
Cost effective, recommended for routine laboratory use.
Suitable for the major hospitals, medicine, biology, agriculture, research and other departments for drying, heating storage, heating, but not suitable for easy volatile, avoid to cause explosion.
Product introduction:
●Provide for the health, medicine, biology, agriculture, research and other departments, for storage, training, research use.
KH-T series:
●The shell and inner chamber are made of high quality 304 stainless steel, with anti-acid and anti-corrosion characteristics. The best equipment for pharmaceutical, food plants, medical research institutes.
Feature:

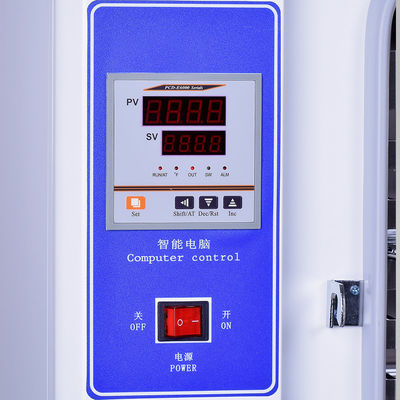

●Wo kinds of controller types Microcomputer intelligent type and LCD display upgraded type.
●The shell is made of high quality cold-rolled steel with environmental electrostatic spray treatment with nice overall color design suitable for all labs.

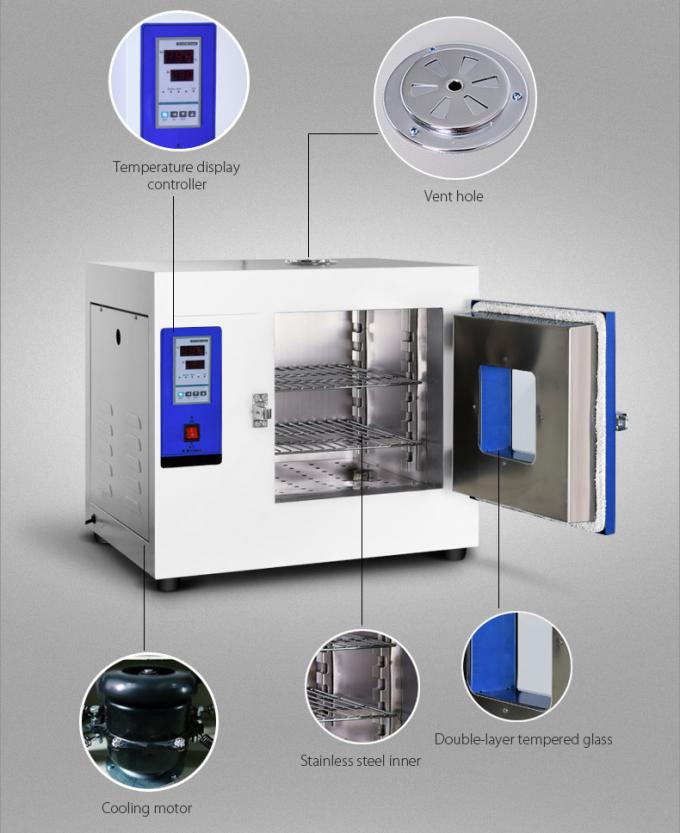

●With a large angle observation window, timer, over-temperature alarm function.

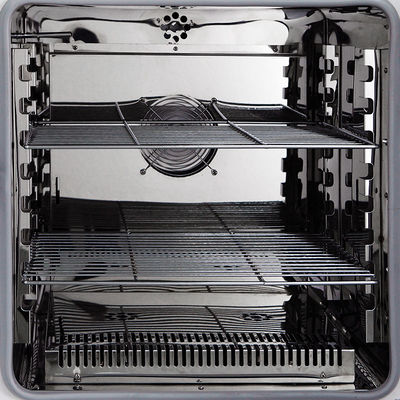

●Semicircular corners inner chamber is easy to clean.

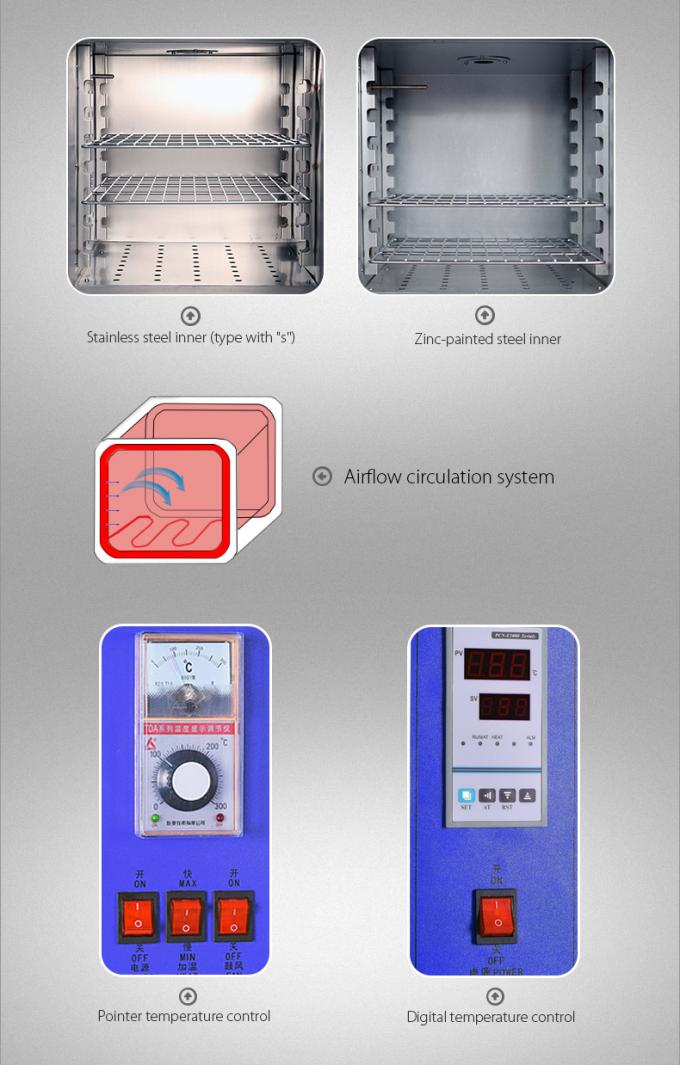

●Two models material mirror stainless steel and ordinary cold-rolled stainless steel.
●Reasonable air cycle to make the temperature more uniform.
●High temperature resistant silicone for sealing the door, high-temperature heat pipes for the heating element to ensure safety and longer life.
Technical Parameters:
|
Model
|
Voltage
(V) |
Temp
range (℃)
|
Timing range
|
Accu racy
(℃) |
Fluct uation (%)
|
Power (KW)
|
Inner size
(mm)
(H*W*D)
|
Overall dimension
(mm) (H*W*D) |
Packing size
(mm)
(H*W*D) |
Net weight
(KG)
|
Shiping weight
(KG) |
|
KH-35T
|
220
|
RT
+5 ~250
|
0~999 min
|
±0.5
|
±1
|
1
|
350*350*350
|
530*640*550
|
650*720*630
|
35.5
|
38.5
|
|
KH-45T
|
1.2
|
450*450*350
|
630*740*550
|
750*820*630
|
45
|
48
|
|||||
|
KH-55T
|
1.6
|
550*550*450
|
750*890*630
|
870*970*710
|
60
|
64
|
|||||
|
KH-75T
|
2.5
|
750*600*500
|
980*965*770
|
1100*1045*850
|
94
|
103
|

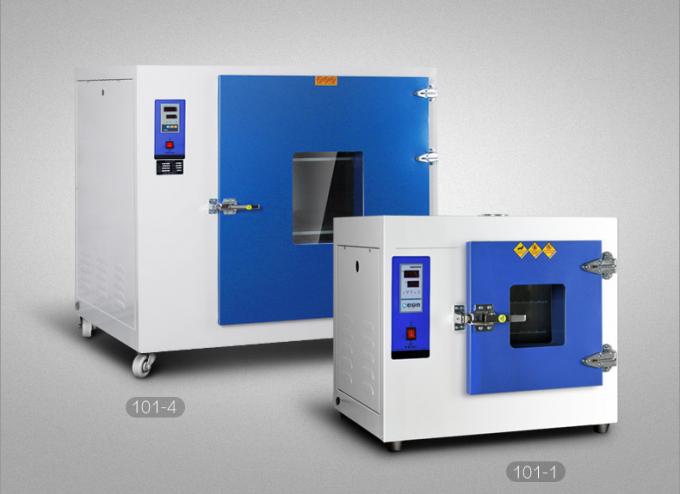

101 series

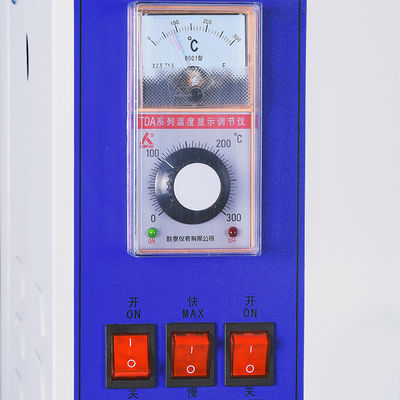

Two kind of temperature controller; pointer controller and Microcomputer intelligent controller type; an forced convection, low noise hot air circulation system; shelf space and shelf number can be adjustable; double-layer tempered glass observation window.
Suitable for industrial factory, labs, research and other departments for drying, baking, heat treatment heat, it is not for volatile, flammable, explosive and other items. In order to avoid to cause an explosion.
Suitable for routine testing of industrial and mining enterprises, basic laboratory and workshop is not recommended for a long time continuous use. The requirement of higher temperature uniformity and large water content of the sample is not recommended.
Technical Parameters:
| Model | Voltage (V) |
Temp (℃) |
Accu racy (℃) |
Fluct uation (%) | Power (KW) |
Inner size (mm) (H*W*D) |
Overall dimension (mm) (H*W*D) |
Packing size (mm) |
Net weight (KG) |
Shiping weight (KG) |
| 101-0(AS) | 110-220 |
RT+5 ~300
|
±1
|
±1 | 0.8~1.6 | 350*350*350 | 590*660*520 | 710*740*600 | 34.8 | 37.2 |
| 101-1(AS) | 110-220 | ±1 | 0.8~1.6 | 450*450*350 | 690*760*520 | 810*840*600 | 41.5 | 45 | ||
| 101-2(AS) | 110-220 | ±1 | 1.6~2.4 | 550*550*450 | 790*870*640 | 910*950*720 | 60 | 64.5 | ||
| 101-3(AS) | 110-220 | ±1 | 2~3 | 750*600*500 | 1050*980*700 | 1270*1060*780 | 80 | 84.5 | ||
| 101-4(AS) | 220-380 | ±2 | 3~4.8 | 1000*800*800 | 1300*1210*1000 | 1420*1290*1080 | 162 | 168 | ||
| 101-5(AS) | 220-380 | ±2 | 4~6 | 1000*1000*1000 | 1300*1420*1200 | 1420*1500*1280 | 189 | 197 |
