Product Details:
|
| Product Name: | Stainless Steel Drying Oven | Door: | Duble Doors |
|---|---|---|---|
| Voltage: | 220/380 | Temp. Range (℃): | RT+5 ~250 |
| Accu Racy (℃): | ±0.5 | Fluct Uation (%): | ±2 |
| Power (KW): | 8~12 | Overall Dimension (mm) (H*W*D): | 2000*1450*1000 |
| Shiping Weight (KG): | 221 | Material: | Stainless Steel, Galvanized Steel Sheet |
| High Light: | Constant Temperature Drying Oven 250C Pepper,Double Door Constant Temperature Drying Oven,250C Pepper Commercial Drying Oven |
||
Customized Industrial Drying Oven Herb Pepper Tray Dry Oven With Stainless Steel Duble Doors
KH-120
Product introduction:
●For dewatering, drying, producing industries such as electroplating industry, electronic industry, alloy jewelry drip, food, plastics industry, leather industry, hardware and other applications, but not for the strong volatile. Flammable and explosive items in order to avoid explosion. (If the explosion-proof requirements, you must install safety facilities, such as explosion-proof lock and blast doors)
Features:
●According to the box size single door or double door design. Large diameter centrifugal wind wheel. Uniform heat circulation.
●The shell is made of high quality cold-rolled steel with metallic paint spray with nice overall color design. Suitable for all workshop production.

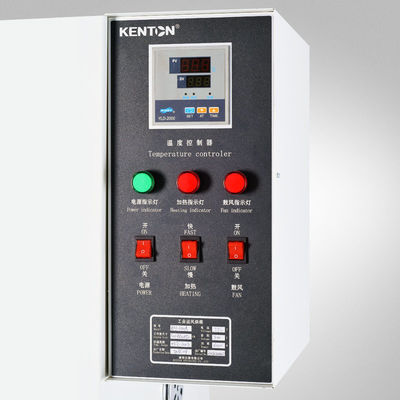

●Digital display intelligent temperature comptroller with microcomputer intelligent PID control and timing function.
●Large diameter centrifugal wind wheel. Uniform heat circulation.

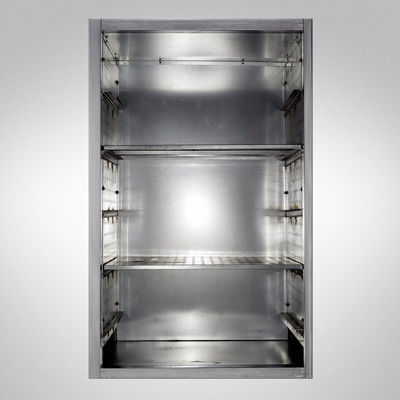

●Two models material inner chamber: mirror stainless steel and zinc-plating.
●This series product with the feature of large storage and temperature rising is fast.
●KH-100 series for the product baking such as metal, plastic, film screen printing, leather processing and industries etc.
Technical Parameters:
|
Model
|
Voltage
(V) |
Temp
range (℃)
|
Accu racy
(℃) |
Fluct uation (%)
|
Power (KW)
|
Inner size
(mm)
(H*W*D)
|
Overall dimension
(mm)
(H*W*D)
|
Packing size
(mm)
(H*W*D)
|
Net weight
(KG)
|
Shiping weight
(KG) |
|
KH-100C
|
220/380
|
RT
+5~250
|
±0.5
|
±2
|
4~6
|
1000×600×500
|
1750×1130×700
|
1870×1210×780
|
152
|
156
|
|
KH-100A
|
4~6
|
1000×600×500
|
1750×1130×700
|
1870×1210×780
|
152
|
156
|
||||
|
KH-100AS
|
4~6
|
1000×600×500
|
1750×1130×700
|
1870×1210×780
|
152
|
156
|
||||
|
KH-110C
|
6~8
|
1000×800×600
|
1800×1350×800
|
|
|
|
||||
|
KH-120C
|
8~12
|
1200×900×800
|
2000×1450×1000
|
2120×1530×1080
|
214
|
221
|
||||
|
KH-120A
|
8~12
|
1200×900×800
|
2000×1450×1000
|
2120×1530×1080
|
214
|
221
|
||||
|
KH-120AS
|
8~12
|
1200×900×800
|
2000×1450×1000
|
2120×1530×1080
|
214
|
221
|
