Product Details:
|
| Product Name: | Small Drying Oven | Voltage: | 110-220V |
|---|---|---|---|
| Temp Range (℃): | RT+5 ~300 | Accu Racy: | ±1 |
| Fluct Uation: | ±2 | Warranty: | 2 Years |
| After-sales Service Provided: | Video Technical Support | Application: | Chemicals Processing,Plastics Processing,drying |
| Heating Rate: | About 10mins From RT To 100°C | Inner Size: | All Size Can Customize |
| High Light: | 0.5KW Chemicals Dry Heat Oven,Dry Heat Oven Benchtop,Benchtop Gravity Convection Drying Oven |
||

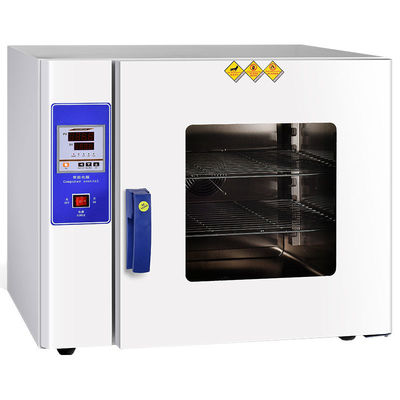

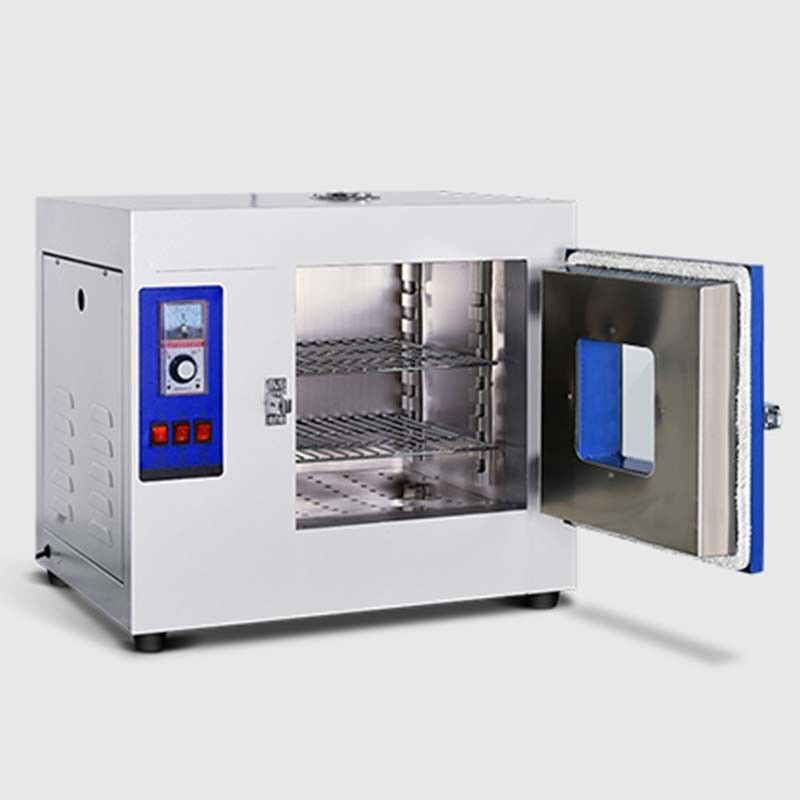

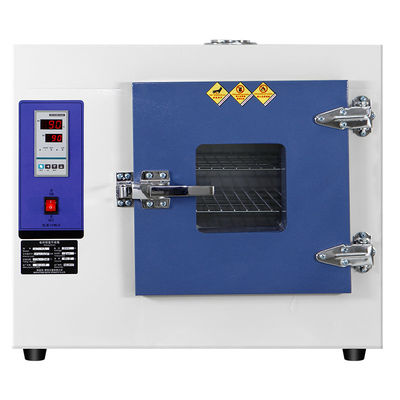

Small Lab Dryer Oven With Gravity Convection Drying Oven For Benchtop

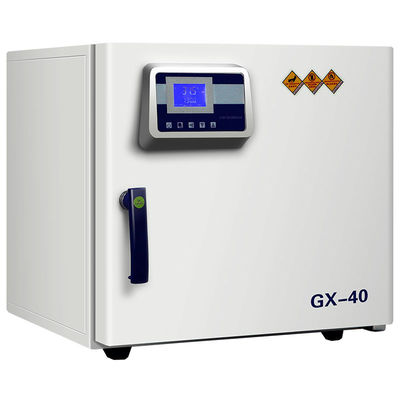

KH/DHG/GX series:
Natural convection; Two kind of temperature controller; pointer controller and Microcomputer intelligent controller type; shelf space and shelf number can be adjustable; double-layer tempered glass observation window;
Suitable for industrial factory, labs, research and other departments for drying, baking, heat treatment, heat, but it's not for volatile, flammable, explosive and other items, in order to avoid to cause an explosion.
Suitable for routine testing of industrial and mining enterprises, basic laboratory and workshop is not recommended for a long time continuous use. The requirement of higher temperature uniformity and large water content t of the sample is not recommended.
Product introduction:
●Provide for the industrial factory, labs, research and other departments, for Drying, baking, melting and sterilizer use.

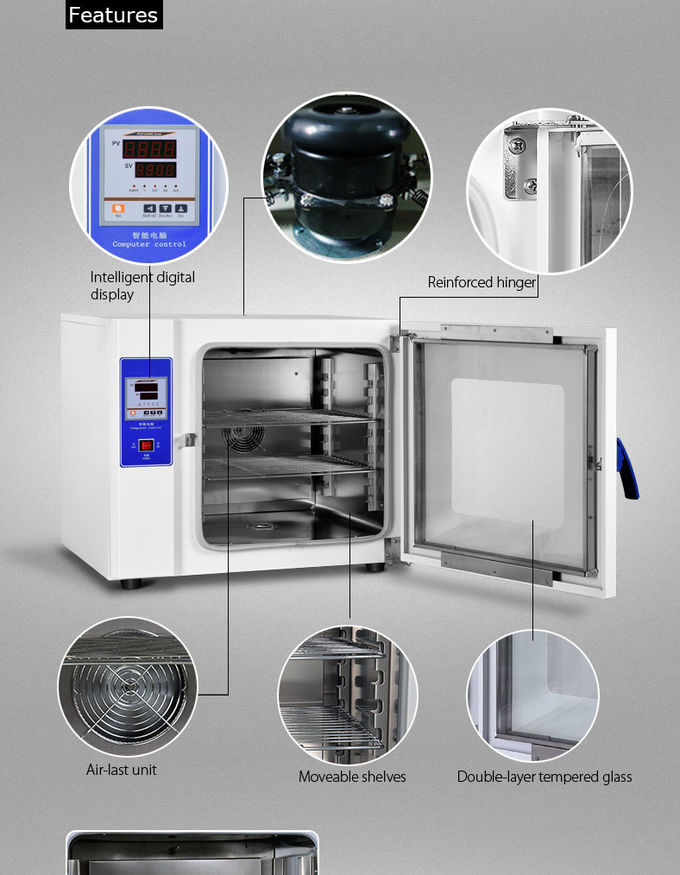

Features:
●Three kinds of controller types Pointer controller, LED microcomputer controller and Microcomputer intelligent type.
●The shell is made of high quality cold-rolled steel with metallic paint spray. Nice overall color design suitable for all research labs and workshop production.
●With double-layer glass observation window, easy to watch the materials in the chamber.
●Two models material inner chamber mirror stainless steel and ordinary cold-rolled stainless steel.
●Air circulation system consists of low noise fans and air cycle duct to make the temperature more uniform. The reasonable air circulation ensures the temperature uniform in the inner chamber and fast warm-up time.
●High temperature resistant silicone for sealing the door, high-temperature heat pipes for the heating element to ensure safety and longer life.
●Natural convection for 202 series oven air circulation.
Technical Parameters:
|
Model
|
Voltage
(V) |
Temp
range (℃)
|
Accu racy
(℃) |
Fluct uation (%)
|
Power (KW)
|
Inner size
(mm)
(H*W*D)
|
Overall dimension
(mm) (H*W*D) |
Packing size
(mm)
(H*W*D) |
Net weight
(KG)
|
Shiping weight
(KG) |
|
202-0(A)
|
110-220
|
RT+5 ~300
|
±1
|
±2
|
0.5
|
250*250*250
|
480*520*400
|
600*600*480
|
19
|
21
|
|
202-1(A)
|
110-220
|
±2
|
0.8~1.6
|
350*350*350
|
590*640*520
|
710*720*600
|
33
|
36
|
||
|
202-2(A)
|
110- 220
|
±2
|
0.8~1.6
|
450*450*350
|
670*720*520
|
790*800*600
|
39.5
|
42.5
|
The modes with “A” is LED microcomputer controller.

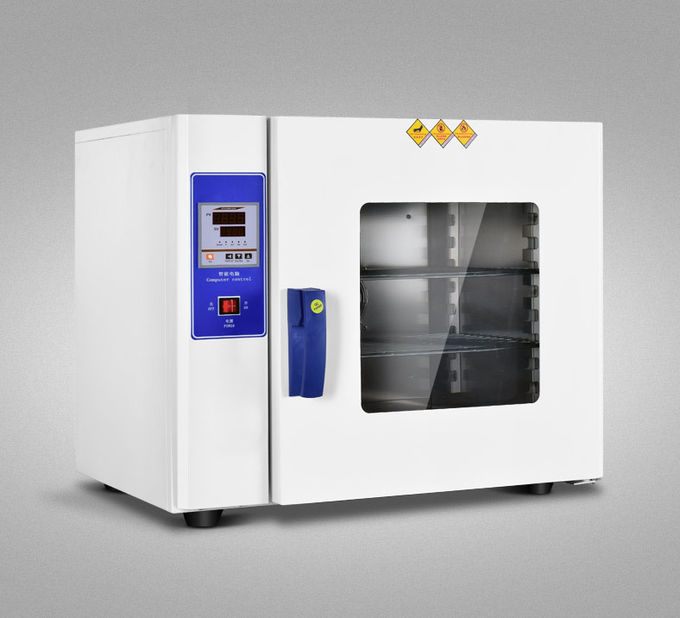

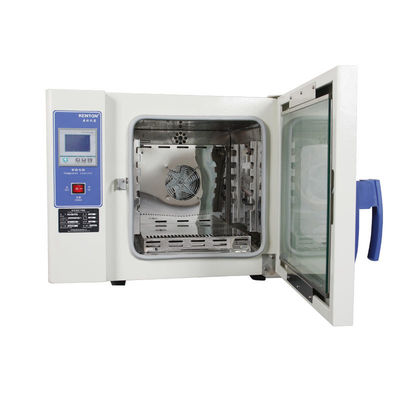

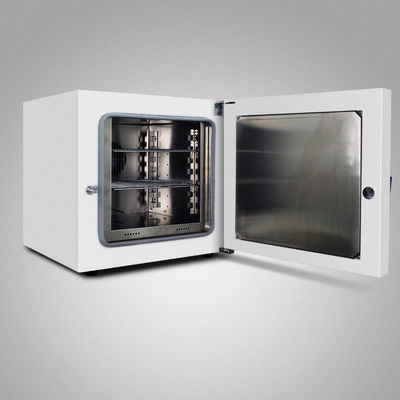

KH series
Acquired CE safety certification, 2-year warranty.
Micro-computer intelligent control, temperature control, timing, over-temperature alarm function; fan forced convection hot air circulation system; stainless steel liner/optional cold rolled steel plate; shelf space and shelf number can be adjustable; high-temperature resistant silicone for sealing the door safe and reliable;
Cost effective recommended for routine laboratory use.
Suitable for the major hospitals, medicine, biology, agriculture, research and other departments for drying, heating storage, heating, but not suitable for easy volatile, avoid to cause explosion.
Technical Parameters:
| Model | Voltage (V) |
Temp
range (℃)
|
Timing range | Accu racy (℃) |
Fluct uation (%) | Power (KW) |
Inner size
(mm)
(H*W*D)
|
Overall dimension (mm) (H*W*D) |
Packing size
(mm)
(H*W*D) |
Net weight
(KG)
|
Shiping weight (KG) |
| KH-25A(S) |
110/
220
|
RT
+5 ~250
|
0~999 min
|
±0.5
|
±1
|
0.5 | 250*250*265 | 470*540*450 | |||
| KH-35A(S) | 1 | 350*350*350 | 530*640*550 | 650*720*630 | 35 | 38 | |||||
| KH-45A(S) | 1.2 | 450*450*350 | 630*740*550 | 750*820*630 | 44.5 | 47.5 | |||||
| KH-55A(S) | 1.6 | 550*550*450 | 750*890*630 | 870*970*710 | 59.5 | 63.5 | |||||
| KH-75A(S) | 2.5 | 750*600*500 | 980*965*770 | 1100*1045*850 | 93 | 102 |
The modes with “S” is stainless steel inner chamber.
