Product Details:
|
| Product Name: | Industrial Drying Oven Machine | Industrial Drying Oven Machine: | 220/380 |
|---|---|---|---|
| Temp. Range (℃): | RT+5 ~250 | Accu Racy (℃): | ±0.5 |
| Fluct Uation (%): | ±2 | Power (KW): | 8~12 |
| Overall Dimension (mm) (H*W*D): | 2000*1450*1000 | Shiping Weight (KG): | 221 |
| Material: | Stainless Steel, Galvanized Steel Sheet | Warranty: | 2 Years |
| High Light: | 12KW Industrial Drying Oven,High Temperature Lab Industrial Drying Oven |
||

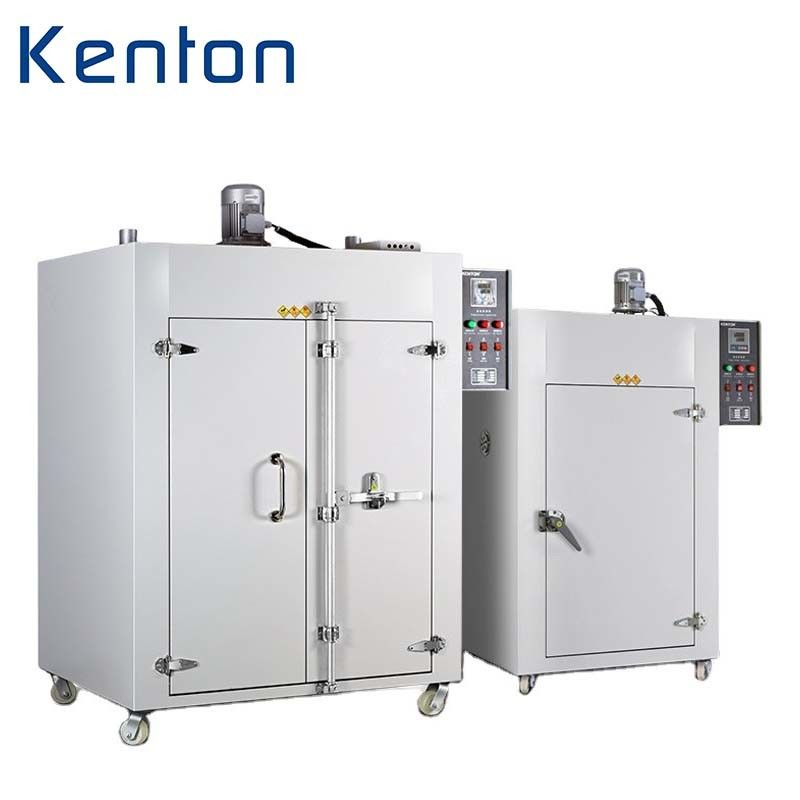

Industrial Baking Cure Oven High Temperature Laboratory Multi Chambers Drying Oven
Use recommended: Suitable for industrial and mining enterprises for mass production, continuous use for a long time.
Product Grade:★★★★
It is used for dehydration and drying of products, such as electroplating industry, electronic industry, oil dripping of alloy jewelry, food and plastic industry, leather industry, hardware and other production industries, but it is not suitable for highly volatile, flammable and explosive materials to avoid explosion. (if there is a need for explosion-proof, safety facilities such as explosion-proof lock.
Structure features:
Optional accessories:
1,Audible and visual alarm system
2,individual over temperature limit
| Model number | voltage | Temp.range ℃ | Timer |
accuracy ℃ |
fluctuation% |
power KW |
interior(mm) (H×W×D) |
exterior(mm) (H×W×D) |
packing(mm)(H×W×D) |
N.W KG |
| KH-100C | 380V | RT+5~250 | 0~99h | ±1 | ±2 | 4~6 | 1000×600×500 | 1750×1130×700 | 1870×1210×780 | 152 |
| KH-100A(S) | 4~6 | 1000×600×500 | 1750×1130×700 | 1870×1210×780 | 152 | |||||
| KH-110C | 6~8 | 1000×800×600 | 1800×1350×800 | 1920*1430*880 | 170 | |||||
| KH-110A(S) | 6~8 | 1000×800×600 | 1800×1350×800 | 1920*1430*880 | 170 | |||||
| KH-120C | 8~12 | 1200×900×800 | 2000×1450×1000 | 2120×1530×1080 | 214 | |||||
| KH-120A(S) | 8~12 | 1200×900×800 | 2000×1450×1000 | 2120×1530×1080 | 214 |
The modes with “S” is stainless steel chamber.
Model“A”is prior to“C”:
1 “A”alu shell motor,“C” iron cast motor(Aluminum shell has fast heat dissipation and is more durable than iron shell),
2 “A”high temperature silica gel door seal ,“C”asbestos cord door seal(Silicone door seal has better sealing effect and no pollution)
3 “A”Progressive locking door buckle, thickened door hinge,“C”Spring typedoor buckle
4 “A”chamber structure and steel material are thicker.
5 “A”High temperature resistant heat pipe, well-known brand electrical components, more durable
Comparison of different models
| Industrial oven | KH-120A/S upgrade | KH-110A/S upgrade | KH-100A/S upgrade | KH-120C basic | KH-110C basic | KH-100C basic |
| controller | ||||||
| PID | ● | ● | ● | ● | ● | ● |
| Internal material | ||||||
| 201 SS | “S"● | “S"● | “S"● | |||
| Galvanized steel | No“S"● | No“S"● | No“S"● | ● | ● | ● |
|
Circulating fan, large diameter wind wheel |
||||||
| High temperature resistant bearing | ● | ● | ● | |||
| Alu motor shell | ● | ● | ● | |||
| Carbon steel motor shell | ● | ● | ● | |||
| heater | ||||||
| High power finned heater | ● | ● | ● | |||
| Electric heater | ● | ● | ● | |||
| Reinforced door handle and door hinge | ● | ● | ● | |||
| Strengthen chamber structure | ● | ● | ● | |||
| door | Double door | Single door | Single door | Double door | Single door | Single door |
|
Horizontal Air circulation |
● | ● | ● | ● | ||
| Vertical air circulation | ● | ● | ||||
| Heating sides | 3 sides | Single side | Single side | Double sides | Single side | Single side |
| Door seal material | High temperature silica gel | High temperature silica gel | High temperature silica gel | asbestos cord | asbestos cord | asbestos cord |
| Temp.range ℃ | RT+5-250 | RT+5~300 | ||||
| Temp accuracy ℃ | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
| fluctuation | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| timer | ● | ● | ● | ● | ● | ● |
| Over temperature alarm | ● | ● | ● | ● | ● | ● |

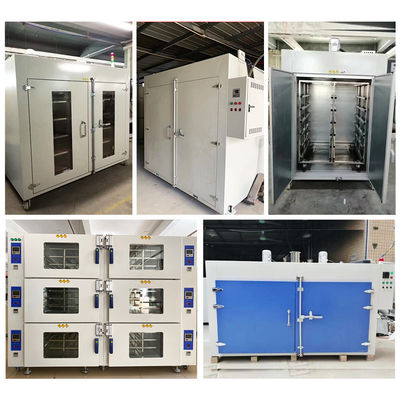

Customers are using
