Product Details:
|
| Product Name: | Industrial Drying Oven | Voltage: | 220/380 |
|---|---|---|---|
| Temp. Range (℃): | RT+5 ~250 | Accu Racy (℃): | ±0.5 |
| Fluct Uation (%): | ±2 | Power (KW): | 8~12 |
| Overall Dimension (mm) (H*W*D): | 2000*1450*1000 | Shiping Weight (KG): | 221 |
| Material: | Stainless Steel, Galvanized Steel Sheet | Warranty: | 2 Years |
| High Light: | 380V Hot Air Oven,High Temperature Experimental Hot Air Oven |
||

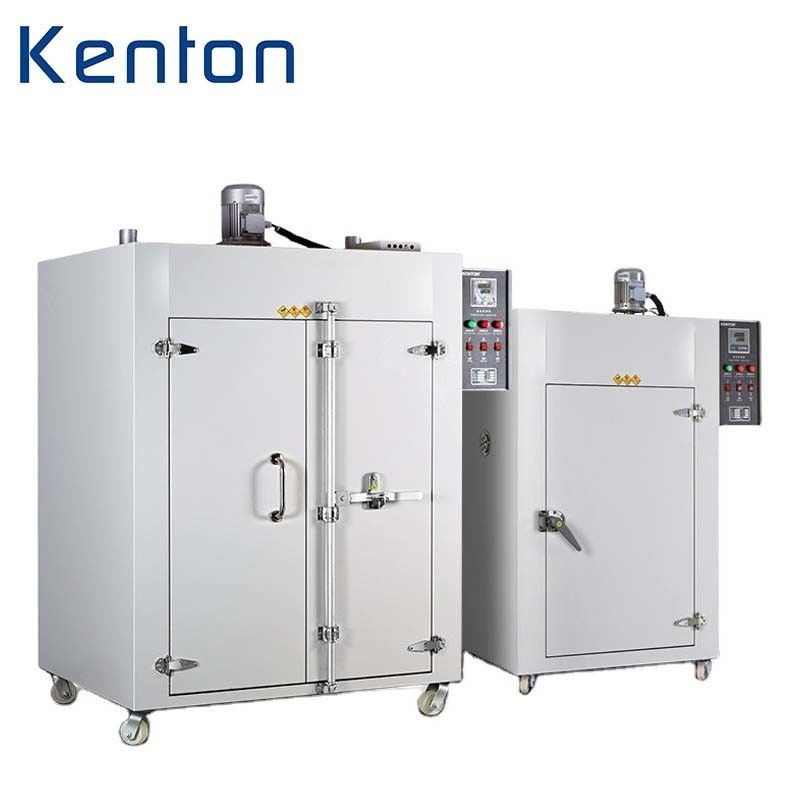

Industrial Oven Large High Temperature Hot Air Oven Experimental Drying Oven
101/202/KH series Electric forced air drying oven——Basic equipment for laboratory and industry
101 & KH SERIES
CE certificated, 2years warrany
101/202
101: Suitable for routine testing for industrial and mining enterprises, basic laboratory and workshop,not recommended for continuous use
Rank:★★★
KH:Recommended to use for routine experiment and test , cost-effective.
Rank:★★★★

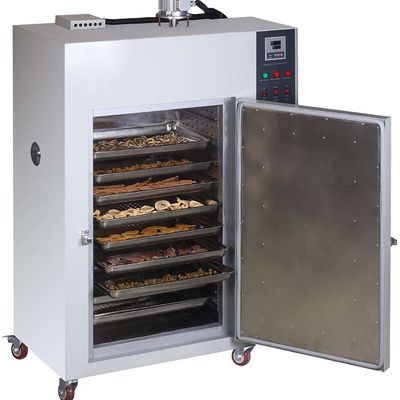

Drying oven is widely used in drying process, sterilization, constant temperature storage, heat treatment and other fields. It is the basic supporting equipment of laboratories, scientific research institutions, industrial and mining enterprise laboratories. This product is not suitable for the baking and drying of volatile flammable and explosive materials, which is easy to cause explosion.
101 series heating element adopts heating wire, so it is not suitable for samples with large water content. KH series (101 upgraded model) can be recommended, because it uses heating tube to heat, which is more durable than heating wire. KH series air duct is a three-sided circulating air outlet, which is more reasonable and more uniform than 101 single-sided air outlet.
Acquired CE safety certification, 2-year warranty.

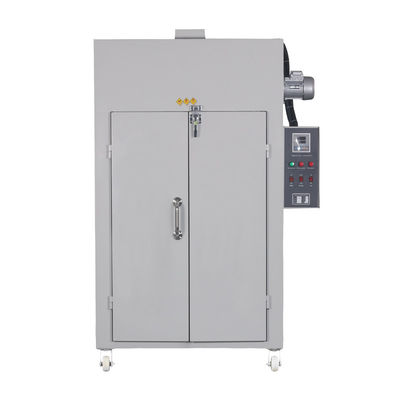

101 introduction
Two kinds of controller types: Pointer controller, LED PID controller.
shell is made of high quality cold-rolled steel with metallic paint spray.
low noise fans and air cycling duct.

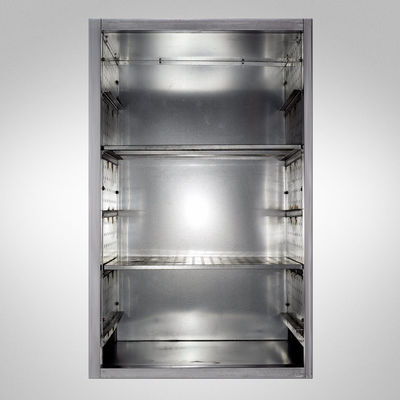

two internal chamber materials:stainless steel and galvanized steel.
the spaces and quantity of shelves can be adjusted.
double tempered glass observation window in the door
101: forced air circulation
202:natural air circulation
Optional accessories:
1,individual temperature limit
| Model |
Voltage (V) |
Temp range (℃) |
Accu racy (℃) |
Fluct uation (%) | Power (KW) | Inner size (mm)(H*W*D) |
Overall dimension (mm) (H*W*D) |
Packing size(mm) (H*W*D) |
Net weight(KG) |
Shiping weight (KG) |
| 101-0(AS) | 220 | RT+5 ~300 | ±1 | ±1 | 0.8~1.6 | 350*350*350 | 590*660*520 | 710*740*600 | 34.8 | 37.2 |
| 101-1(AS) | 0.8~1.6 | 450*450*350 | 690*760*520 | 810*840*600 | 41.5 | 45 | ||||
| 101-2(AS) | 1.6~2.4 | 550*550*450 | 790*870*640 | 910*950*720 | 60 | 64.5 | ||||
| 101-3(AS) | 2~3 | 750*600*500 | 1050*980*700 | 1270*1060*780 | 80 | 84.5 | ||||
| 101-4(AS) | 380 | ±2 | 3~4.8 | 1000*800*800 | 1300*1210*1000 | 1420*1290*1080 | 162 | 168 | ||
| 101-5(AS) | 6 | 350*350*350 | 590*660*520 | 710*740*600 | 189 | 197 |
Notes
The modes with “A” is LED microcomputer controller.
The modes with “S” is stainless steel inner chamber.

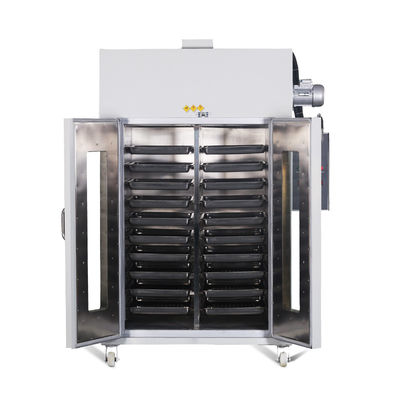

Different kind of shelves

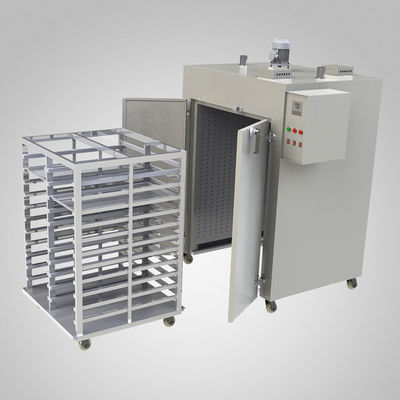

KH series(upgraded version against 101)
Structure feature:
Low noise fans and air cycling duct, reasonable air duct and circulation system makes stable temperature working environment.
Full stainless steel version:The shell and chamber are made of high-quality stainless steel plate, which has the characteristics of acid-base and corrosion resistance. It is the best equipment for pharmaceutical factories, food factories, medical research and other institutions.
Optional accessories:
1.programmable controller
2.individual temperature limit
