Product Details:
|
| Product Name: | PCB Drying Oven | Temp Range (℃): | RT+5 ~300°C |
|---|---|---|---|
| Heating Rate: | About 10mins From RT To 100°C | Application: | Chemicals Processing,Plastics Processing,drying |
| Accu Racy: | ±1 | Power: | 1.6KW |
| Material: | Galvanized Steel Sheet | Voltage: | 110V/60Hz Or 220V/50Hz |
| Warranty: | 2 Years | After-sales Service Provided: | Video Technical Support |
| High Light: | Lab High Temperature Vacuum Drying Oven,Industrial Vacuum Drying Oven |
||
Optional accessories:
1,individual temperature limit
| Model |
Voltage (V) |
Temp range (℃) |
Accu racy (℃) |
Fluct uation (%) | Power (KW) | Inner size (mm)(H*W*D) |
Overall dimension (mm) (H*W*D) |
Packing size(mm) (H*W*D) |
Net weight(KG) |
Shiping weight (KG) |
| 101-0(AS) | 220 | RT+5 ~300 | ±1 | ±1 | 0.8~1.6 | 350*350*350 | 590*660*520 | 710*740*600 | 34.8 | 37.2 |
| 101-1(AS) | 0.8~1.6 | 450*450*350 | 690*760*520 | 810*840*600 | 41.5 | 45 | ||||
| 101-2(AS) | 1.6~2.4 | 550*550*450 | 790*870*640 | 910*950*720 | 60 | 64.5 | ||||
| 101-3(AS) | 2~3 | 750*600*500 | 1050*980*700 | 1270*1060*780 | 80 | 84.5 |
| 101-4(AS) | 380 | ±2 | 3~4.8 | 1000*800*800 | 1300*1210*1000 | 1420*1290*1080 | 162 | 168 | ||
| 101-5(AS) | 6 | 350*350*350 | 590*660*520 | 710*740*600 | 189 | 197 |
Notes
The modes with “A” is LED microcomputer controller.
The modes with “S” is stainless steel inner chamber.
101: Suitable for routine testing for industrial and mining enterprises, basic laboratory and workshop,not recommended for continuous use
Rank:★★★
KH:Recommended to use for routine experiment and test , cost-effective.
Rank:★★★★
Drying oven is widely used in drying process, sterilization, constant temperature storage, heat treatment and other fields. It is the basic supporting equipment of laboratories, scientific research institutions, industrial and mining enterprise laboratories. This product is not suitable for the baking and drying of volatile flammable and explosive materials, which is easy to cause explosion.
101 series heating element adopts heating wire, so it is not suitable for samples with large water content. KH series (101 upgraded model) can be recommended, because it uses heating tube to heat, which is more durable than heating wire. KH series air duct is a three-sided circulating air outlet, which is more reasonable and more uniform than 101 single-sided air outlet.
Acquired CE safety certification, 2-year warranty.
101 introduction:

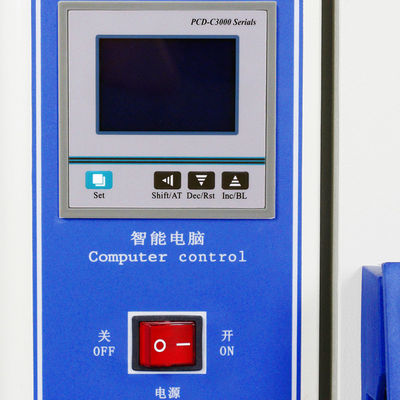

Two kinds of controller types: Pointer controller, LED PID controller.
shell is made of high quality cold-rolled steel with metallic paint spray.
low noise fans and air cycling duct.
two internal chamber materials:stainless steel and galvanized steel.

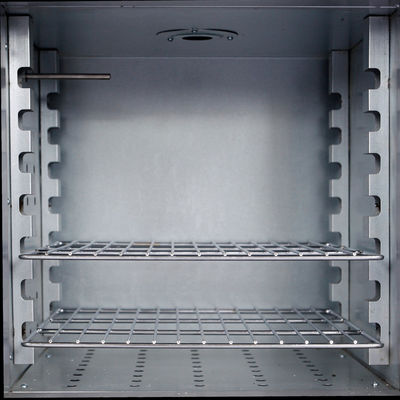

the spaces and quantity of shelves can be adjusted.
double tempered glass observation window in the door.
101: forced air circulation
202:natural air circulation
2 years warranty
KENTON®
KENTON APPARATUS LTD. Was found in 1999, production plant was set in Guangzhou,China.It is mainly engaged in production,sales and export of laboratory thermostatic equipment and biological scientific equipment,and has provided high-quality products and services for professional laboratories and scientific research.institutions at domestics and abroad for many years.
We relies on an international professional R & D team to keep the design and technology of products in step with the world and constantly seek breakthroughs.
Since its establishment, the company has been focusing on thermostatic equipment products in related fields. Now it is a high-tech enterprise integrating science, industry and trade. Its business covers China, Southeast Asia, America, Europe, Australia and other countries.
At the same time, based on the business philosophy of "walking with scientific researchers", and taking advantage of the company's geographical advantages, the company has carried out extensive communication and exchange with scientific researchers in different regions for many years, and carried out long-term follow-up services to users, constantly improving the function and quality of products, so that products can better meet the requirements of users.
